Classic Öhlins Shocks for vintage racing applications -
Altho I address Husqvarna, these shocks are built for all Classic dirt bikes - CanAm, Bultaco, BSA, CZ, Maico, Honda, Suzuki, Yamaha, Kawasaki, Penton, KTM, Greeves, Triumph,

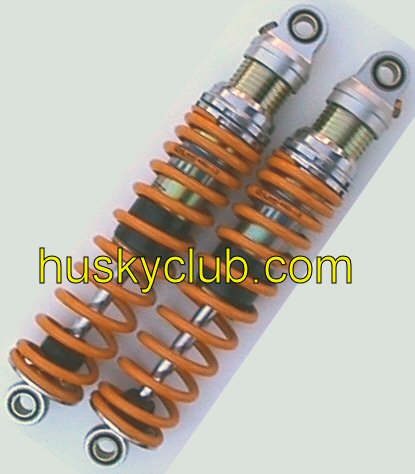

Classic Öhlins for vintage Husqvarna 66-74
Mounted body down for adequate chain clearance, sprung for individual rider weights. These may be mounted body up, but chain runs close enough to sometimes scrape spring. These are modern shim stacks with gas isolation piston for maximum performance. Springs are available for future tuning if needed. cam adjusted preload is included.
Priced at $690 pair + shipping

At 08:46 PM 4/17/2005, you wrote:
Hi Craig, I am interested in ordering a set of Ohlins shocks for a 1974 CR250 mag. What details do you need from me and how long before they would be ready to ship? Also what is the current price?, regards, Paul , Sydney Australia

Hi Paul, thanks for checking, i stock the Classic Ohlins in the standard built lengths and i select the spring for application - $470+ shipping - in stock ready to ship
length - 13.4"
stroke - 4.1"
this configuration is used on many mag 250s
however -
stock Mag 250 shock is 11.9" this standard Ohlins Classic is 13.4"
stock Mag 250 shock travel is 3.7 this Ohlins is 4+
so naturally a 250 Mag bike with 13.4 Ohlins Classics sits higher at rear, chain may rub top of swing arm, and actual rear wheel travel is 6"+, this is because of the moved up position of the shock mount and longer Mag 250 swing arm.
so
Classic Ohlins shock can be built to custom order (and i do this regularly for Mag 250s and others)
length - 316mm/12.4in
stroke - 92mm
rear wheel travel actual - 5.3", tech inspec observed - 4"
Custom build pair - $760 in 2011

note: this need for perfect length/travel is the reason for my Ohlins shop to build Classics to spec, see info at page bottom.

Part #	Length	Stroke	Spring Rate	Notes	Price
CC-6070	340mm/13.4in	105mm/4.1in	To be determined	valved for standard applications	$690
CC-7070	340mm/13.4in	105mm/4.1in	To be determined	valved for use with higher rate springs	$690

CC-6060	360mm/14.2in	107mm/4.2in	To be determined	valved for standard applications	$690
CC-7060	360mm/14.2in	107mm/4.2in	To be determined	valved for use with higher rate springs	$690

CC-7080	380.5mm/15.0in	107mm/4.2in	To be determined	valved for standard applications	$690

Options -
new pair of Ohlins springs - $90

Classic Öhlins for Evo Husqvarna 75-76
Mounted body up, these classic shocks have modern shim stack technology. Springs to suit rider weight and events. Cam preload adjust, spring rub band.
Bushings to suit 10mm mounts on 75-76 ML series Husqvarna. Priced at $690 pair + shipping

Part #	Length	Stroke	Spring Rate	Notes	Price
CC-7070	340mm/13.4in	105mm/4.1in	To be determined	rider weight/geometry	$690
CC-7060	360mm/14.2in	107mm/4.2in	To be determined	rider weight/geometry	$690
CC-7080	380.5mm/15.0in	107mm/4.2in	To be determined	rider weight/geometry	$690

Items to consider when buying Ohlins above shocks-
1) Buy your shocks from somone who actually knows the business so you can follow up with questions and tech to make your bike the best.
2) Purchase above shock set with 8mm spacers and drill the 8mm out to 3/8" if you want this 3/8"fit. Otherwise you will be modifying your bike to fit 10mm (and buying new bolts and nuts) or putting 3/8" bolts in a 10mm bore. You may be already 10mm , no problem, but stock period Girlings (1965-1976)are 3/8" mount bolts.
3) All of the above sets come with the short end eyes which work pretty well with many bikes

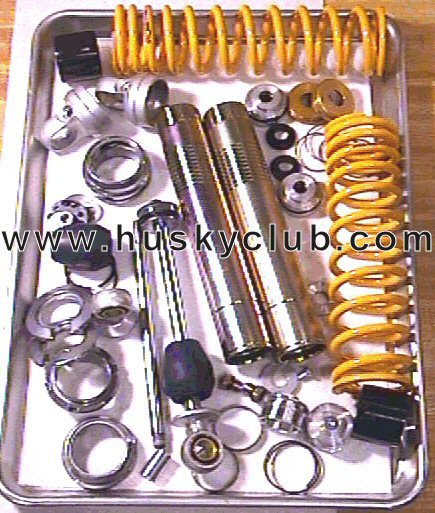

Custom Built to Order - Classic Öhlins
now available as of May 2005 !
Classic Öhlins shocks built to your exact order - for many competition dirt bikes between 1954-1980
body length to suit application.
shaft length to suit
end eyes to suit exact application.
bushing mount (spherical bearing mounts upgrade)
single or dual spring sets
shim stack valving specifically for you and your bike and spring set
no loose pieces or mounting shims, direct bolt in when ordered with spherical brgs !

Custom build price - $760 with single progressive Ohlins spring system
additional upgrades -
spherical brgs and spacers for upper mounts - $38 for 2 upper mount points (most common)
spherical brgs and custom spacers - $75 for all 4 mount points (best choice)
dual spring set with seperator - add $55
second spare of alternate single Öhlins progressive spring set pair (heavier or lighter) - $95

Bultaco - 15.50"
CamAm - 16.75"
Husky - 16.00", 16.25", 16.375"

Honda - 16.00", 17.50"
Suzuki - 15.375"
Kawasaki - 18.00"
KTM - 13.875"
250 Mag Husky - 12.00", 12.50"
and many others

notes -
1) lower spherical brgs allow for maximum offset at lower mount to improve chain clearance, improve shock action.

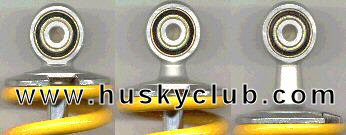

2) end eyes pictured at right show 25mm, 33mm and 46mm

Custom built Classic Ohlins - 2005

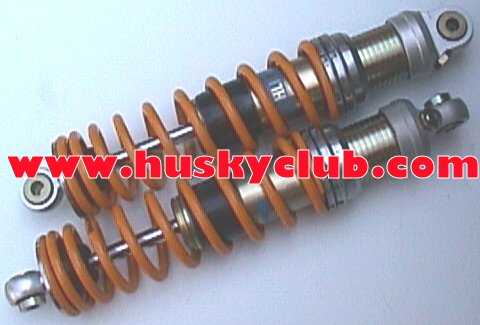

Husqvarna 1974 Mag 250 CR
Progressive springs, 316mm/12.4in length, 92mm travel, cam adjust preload, 25mm eye length, 210 lb rider, offset spacers, spherical bearings at all four mount points, oem travel, AHRMA legal, custom damping, spring/cylinder protection sleeves, nitrogen charged DeCarbon internal isolation piston, needle gas ports, NO LOOSE PIECES.
This custom Ohlins Classic build can be built for any Husqvarna needing or desiring chain clearance! 1967-1974 all Husqvarna models! different springs and valving custom built for each rider and application.

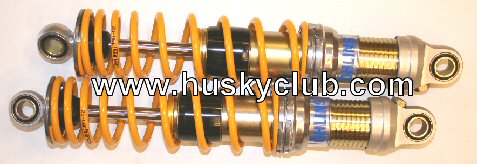

Suzuki 1974 TM250
Progressive spring set, 325mm length, cam adjust preload, lightweight build with correct chain clearance, 25mm end eye, 14mm eye mount, AHRMA legal, custom damping, spring/cylinder protection sleeves, nitrogen charged DeCarbon internal isolation piston, needle gas ports, special bumpers.

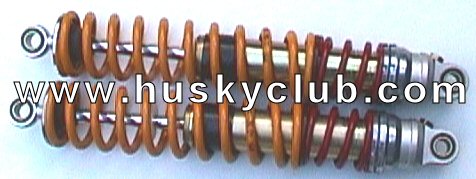

CanAm MX5 w/MX6 swing arm
Dual spring, cam adjust preload , 33mm eye length, 406mm length, 220 lb rider weight

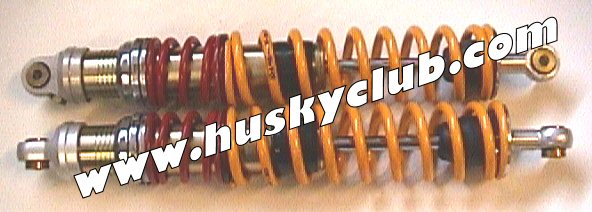

CanAm 1977
Dual springs, cam adjust preload, heim bearings at top and bottom, off set mount spacers, 46mm end eye, 425mm length, 220 rider weight, no loose pieces
