| Description |
Lamborghinin part number |
OEM details |
Notes |
Alt numbers |
|
| bearing, ball, starter
idler shaft - 2ea |
CSN02826 |
RIV ELL20, 20x42x12mm open |
SKF 6004 |
||
| bearing, inner,
transmission idler gear |
CAN03624 |
Durkopp, DNK 35/20A,
35x45x20 caged needle roller |
NK-35/20 Consolidated |
SKF K35X45X20 |
|
| bearing, outer,
transmission idler gear |
CRN03753 |
25x52x18, RIV 22205C double row self aligning sherical |
SKF 22205C |
||
| bearing, outer,
transmission input shaft |
CSN03709 |
L RIV 2AA ITALY U 25x52x18 double row, plain |
SKF 4205 ATN9 |
||
| seal, crank drive inner -
2ea |
GN03626 |
50 x 58 x 4 mm |
|||
| seal, crank drive - outer |
GN03627 |
70 x 85 x 8mm |
|||
| seal, crank outer |
MM03686 |
doesn't make sense - does not exist? |
|||
| key, shaft |
LN03635 |
5x5x30mm |
DIN 6885A | ||
| washer, spacer |
RN-04174 |
25 x 34 x 2.5mm |
|||
| gear, starter engage - early gear, starter engage - late |
ME-03573 ME-06583 |
56 tooth - 9tooth pinion - 141.4mm OD 67 tooth - ? tooth pinion - 144.5mm OD |
different size teeth |
||
| oring |
GN-03693 |
anello OR in gomma nera NBR, dim. 39,35 x 2,62 mm, tipo 3156 |

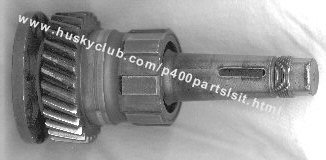

MM03583 with assembly parts
