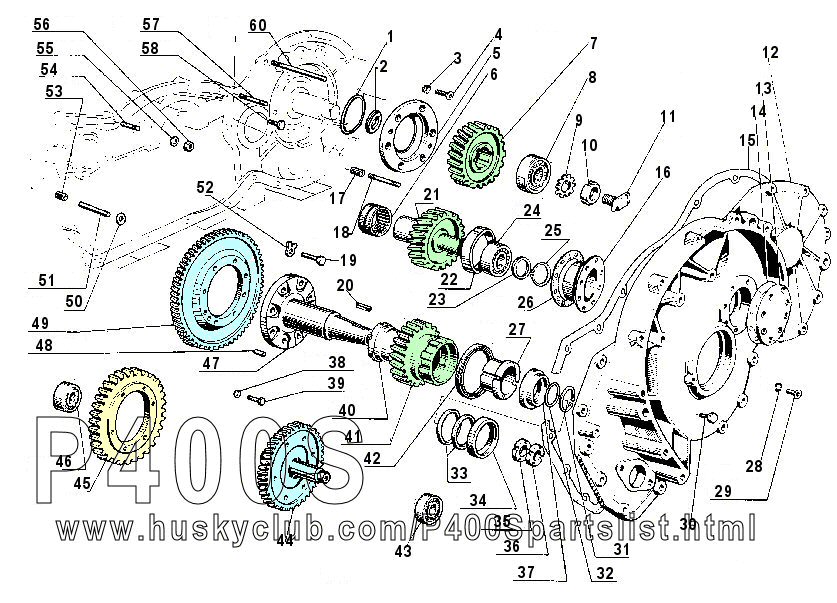

| Lamborghini part number |
Description |
approx price |
notes |
|
| 1 | GN8608701 |
oring 87x1 78 | $43.58 | |
| 2 | GN-03693, 008614201 | lip seal 42x52x4 mm | $23.59 | |
| 3 | RFN-05692 | star cone washer 6mm | $4.12 | |
| 4 | VN-02784 |
screw 6x14 8g/Zb | $4.12 | |
| 5 | TF-07173, 002107173 | flange | $398.64 | |
| 6 | CRN-05035 | Durkopp, DNK 35/20A, 35x45x20 | ||
| 7 | TC-07169, 002407169 | gearbox shaft gear | $297.60 | |
| 8 | CSN-03709, 008502504 | bearing RIV 4205 EX 2AA | $95.78 | |
| 9 | RFN-02184, 008412501 | lock tab washer Skf Mbs | $13.18 | |
| 10 | GHN-02183, 008252504 | ring nut 25 x 1.5 x 7 8g | $41.25 | |
| 11 | TF-04191 |
ring nut lock bolt | $71.44 | |
| 12 | MB-07927 | crankcase casting |
||
| 13 | TC-05461, 002105461 | cover, idler assm brg. | $228.36 | |
| 14 | TF-05467, | gasket, bearing cover | $4.12 | |
| 15 | MB-02488, | gasket, case | $37.18 | |
| 16 | TC-05460, 002405460 | bushing, case insert spacer | $307.28 | |
| 17 | GRN-03661 |
dowel 9x13 C40 | $19.48 | |
| 18 | PN-02893 |
stud 8x60 Uni 5911 8g Z | $22.85 | |
| 19 | BN-03575 |
screw 8x30 10kzd | $2.14 | |
| 20 | LN-03635 |
key 5x5x30 12k | $2.14 | |
| 21 | TC-05457, 002405457 | idler gear | $336.23 | |
| 22 | TC-05838, 002405838 | gear damper ring | $71.44 | |
| 23 | RN-05464, 008403001 | washer 30x38x2x 38ncd4 | $30.72 | |
| 24 | CRN-05463, 008523006 | bearing, RIV 22206C (30x62x20?) | $98.95 | maybe SKF 2206? |
| 25 | SGN-05846, 08582602 | retain ring external E 29 | $10.16 | |
| 26 | TC-05668, 002405668 |
gasket, case insert spacer | $10.16 | |
| 27 | MM-04052, 001404052 | bushing, special | $281.03 | |
| 28 | RFN-05692 |
washer, corrugated 6mm | $4.12 | |
| 29 | VN-02784, 008700613 |
screw 6x14 8g/Zb | $4.12 | |
| 30 | BN-04125, 008100841 |
screw 6x1x8 8g | $15.69 | |
| 31 | SGN-03692, 08583601 | retain ring external Seeger Aa 40 E | $2.14 | |
| 32 | GN-03693, 008603903 | oring OR 3156 | $4.12 | anello OR in gomma nera NBR, dim. 39,35 x 2,62 mm, tipo 3156 |
| 33 | GN-03626, 008615005 | oil seal 50x58x4 mm | $20.70 | |
| 34 | MM-03686 |
oil seal bracket ring | $68.72 | |
| 35 | GHN-03600, 008252802 | 28x1.5 special ring nut | $78.51 | |
| 36 | GHN-04932, 008252801 | 28x1.5 special ring nut | $43.17 | |
| 37 | MM-04054, 001404054 | shim, gear | $177.02 | |
| 38 | RFN-00225 |
washer D.6.4 Z | $2.14 | |
| 39 | BN-02616 |
hex screw 6 x 16 5s/Z | $4.12 | |
| 40 | MM-04051, 001404051 | Bushing | $333.37 | |
| 41 | MM-03565, 001403565 | Crankshaft Transmission Gear | $401.37 | |
| 42 | GN-03832, 08617002, or 3 | seal 70x85x8 | $80.48 | CR-27710 |
| 43 | CSN-02826, 08502003 |
RIV ELL20, 20x42x12mm open |
$32.64 | SKF-6004 |
| 44 | ME-07389, 001607389 | starter motor/crankshaft gear | $466.42 | |
| 45 | ME-06583, 001606583 | starter motor crown gear | $675.00 | 67 tooth, approx 144.5mm OD |
| 46 | CSN-02826, 08502003 |
RIV ELL20, 20x42x12mm open |
$32.64 | SKF-6004 |
| 47 | MM-03583, 001403583 | clutch shaft journal | $904.80 | |
| 48 | GRN-03577 |
dowel 8x18 | $18.78 | |
| 49 | MM-03578, 001403578 | crankshaft starter gear | $408.40 | |
| 50 | RN-02474 | washer 8.5x23x3 | $18.78 | |
| 51 | PN-02480 |
stud 8x22 10k Z | $21.78 | |
| 52 | RFN-03698 |
crankshaft bolt plate | $4.12 | |
| 53 | GRN-02929 |
dowel 13x33 | $15.69 | |
| 54 | PN-00405 |
stud 8x25 8g Zd | $10.16 | |
| 55 | RFN-00694 |
washer corrugated 6mm | $4.12 | |
| 56 | DN-00138, |
M8 8g/Z nut | $4.12 | |
| 57 | PN-03616, 008300833 |
stud 8x45 8g Z | $12.96 | |
| 58 | BN-04125 |
hex screw 6 x 1.0 x 8 8g | $15.69 | |
| 60 | PN-03615 |
stud 8x90 8g Z | $22.85 |
