| description |

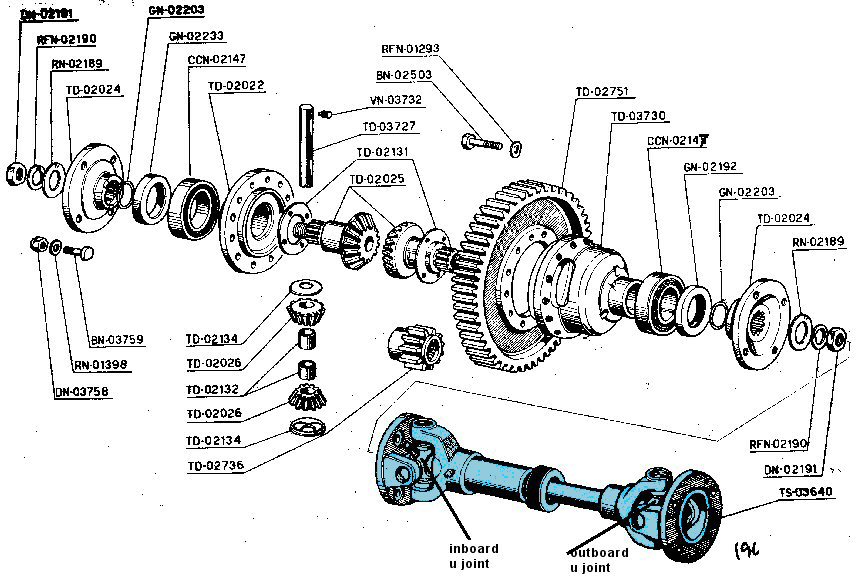

Lamborghini part number |
OEM details |
Notes |
notes |
|

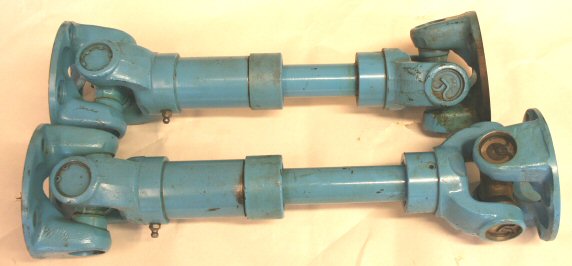

| U-joint, outboard |
30 x 90 , external clips |
||||
| U-joint, inboard |
30 x 90, external clips |
||||
| seal, shaft, rotation oriented, graphite - left |
GN-02192 008612801 |
HUTHRING, L |
50 x 72 x 12 | ELRING L |
|
| seal, shaft, rotation oriented, graphite - right |
GN-02233 008615004 |
HUTHRING, R HUTRING D.50x72x12 D |
50 x 72 x 12 | ELRING R |
|
| o-ring, flange seal - 2ea |
GN-02203 008602801 |
ANELLO D.28 OR 4112 |
28mm |
||
| bearing, tapered roller, rear axle - 2ea |
CCN-02147 008545001 |
outer race only - TIMKEN, Made in France, 362-X inner race/roller - Timken, 368-A |
|||
| bolt, special |
BN-03759 |
special shoulder bolt, round head with a flat to eliminate wrench |
|||
| washer, flat |
RN-01398 |
steel washer 11.5 x 20 x 3 |
|||
| nut, nylock |
DN-03758 |
11 x 1.0 nylock nut |
