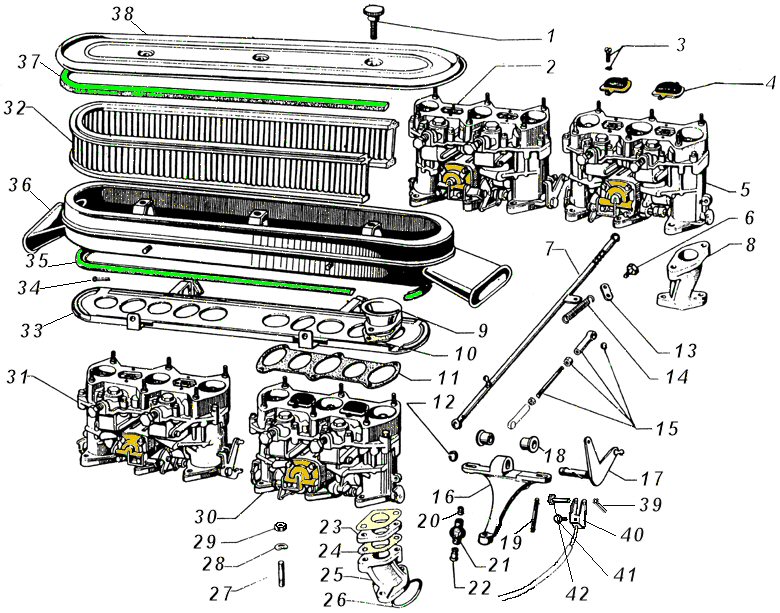

P400S, SV Webers and details

	Lambo number	Description	Quantity	Est $	additional info	notes
1		bolt, air cleaner top	6
2		Weber 40 IDL 3C	1
3		screw / washer	16/16		64700.007
4		screen cover, 37012.003	8		37012.003
5		Weber 40 IDL 3C	1
6		screw	1
7		throttle rod assembly	1		5x0.8 threads left/right with l/r jam nuts, long rod has left thrds	steel, chrome plated
8		manifold intake rear	6
9		horn, intake	12		steel, cZ
10		gasket	12
11		gasket	4
12		snap ring, E 10 Uni 7435-75	1			black oxide
13		bracket	1		steel, yZ
14		spring	1
15		throttle rod assembly, 5mm	1		5x0.8 threads, 72mm rod lenth, 20mm threads on each end	steel, black oxide on all
16		bracket, cast aluminum	1
17		bracket, steel	1		steel,
18		bushing, 10F7x14x18	2		steel
19		Stud M8x35 Uni 5909 8g Z	2
20
21
22
23
24
25		manifold intake front	6
26		Oring, manifold to head	12
27	008300836	Stud 8x1.25x30 8g	22
28	008410805	washer , 8.4x15x0.8din137/B	24
29	008200808	nut, M8x1.25x8 Uni 55878 G/Z" Nu	24
30		Weber 40 IDL 3C	1
31		Weber 40 IDL 3C	1
32
33
34		Cotter pin
35
36
37		gasket
38		cover, air cleaner			steel, painted off white with Fiaam graphics
39		cotter pin	1		1.5mm
40		clevis, cable end	1		steel,
41		bolt, cable retaining	1		5x0.8x7, steel, black oxide
42		pin, linkage	1		steel, black oxide
43
44

notes from P400S parts book - starting with engine #30431, GN-05367 intake manifold o-ring replaces GN-01237 (8001237)

Spec pieces for a P400S SV Miura Weber 40 IDL 3C1, C2, or C3

Description Weber	Fig #	Quan	OEM Weber#	Current Weber #	Description Italian	Size in mm	notes
Venturi	67	3	34894.002		Diffusore	32
Aux venturi	68	3	31966.003		Centratore	4.50
Main Jet	60	3	41120.001		Getto principale	1.30
Idle jet	65	3	41160.003		Getto minimo	0.55
Accelerator pump jet	70	3	41252.001		Getto pompa	0.50
Air jet	74	3	41360.001		Getto aria di freno	1.80
Mix tube	73	3	61440.151		Tubetto emulsionatore	F 26
Inlet valve	72	1	64290.001		Valvola aspirazione (con foro di scario)	0.50
plate valve	25	1	64190.004		Valvola a piattello	closed
float needle valve	5	2	64240.009		Valvola a spillo	1.75
