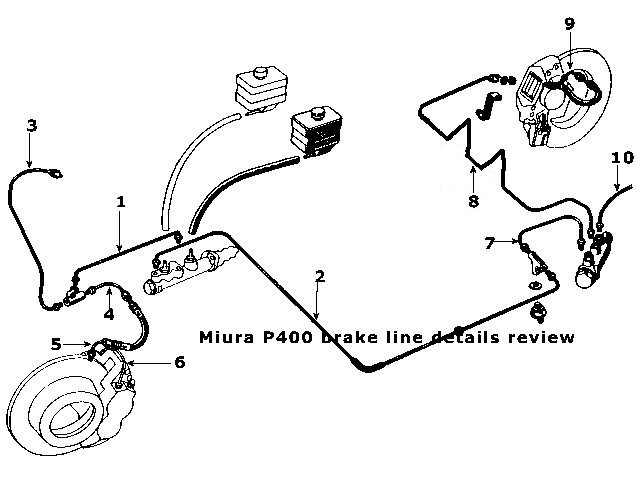

| fig no |
Lambo number |
Description |
start fitting |
length |
end fitting |
notes |
| 1 |
FA-04238 |
master cyl rear port to front T |
10 x 1.25 SAE ball |
600mm |
3/8" x 24 SAE ball |
|
| 2 |
FA-04239 |
master cyl front port to rear T |
10 x 1.25 SAE ball |
2210mm |
3/8" x 24 SAE ball |
|
| 3 |
FA-03942 |
front T to right front hose |
3/8" x 24 SAE ball |
740mm |
3/8" x 24 45deg double flare |
requires 2 grommets to isolate from chassis |
| 4 |
FA-03941 |
front T to left front hose |
3/8" x 24 SAE ball |
150mm |
3/8" x 24 45deg double flare | |
| 5 |
FP-01437 |
left hose to Girling caliper |
3/8" x 24 45deg double flare | 190mm |
3/8" x 24 SAE ball | |
| 5A |
FP-01437 |
right hose to Girling caliper |
3/8" x 24 45deg double flare | 190mm |
3/8" x 24 SAE ball | not shown |
| 6 |
na |
left front Girling jumper |
3/8" x 24 SAE ball | 263mm |
3/8" x 24 SAE ball | |
| 6A |
na |
right front Girling jumper |
3/8" x 24 SAE ball | 263mm |
3/8" x 24 SAE ball | not shown |
| 7 |
FA-04306 |
rear T to pressure limiter |
3/8" x 24 SAE ball | 160mm |
12 x 1.25 SAE ball |
special end fitting |
| 8 |
FP-04307 |
pressure limiter to right rear hose |
10 x 1.25 SAE ball | 1955mm |
3/8" x 24 45deg double flare | |
| 9 |
FP-01436 |
right rear hose to Girling caliper |
3/8" x 24 45deg double flare | 100mm |
3/8" x 24 SAE ball | |
| 9A |
FP-01436 |
left rear hose to Girling caliper |
3/8" x 24 45deg double flare | 100mm |
3/8" x 24 SAE ball | |
| 10 |
FP-04308 |
pressure limiter to left rear hose |
10 x 1.25 SAE ball | 790mm |
3/8" x 24 45deg double flare | |
| 11 |
na |
left rear Girling jumper |
3/8" x 24 SAE ball | 220mm |
3/8" x 24 SAE ball | not shown |
| 11A |
na |
right rear Girling jumper |
3/8" x 24 SAE ball | 220mm |
3/8" x 24 SAE ball | not shown |
