P400 pedals, brake and clutch master cyls


description
 Lamborghini
part number
 oem  manufacture
part number
 alt supply
number
 notes
 approx
cost
Brake master cyl
 CP-04200
 Bonaldi? Koni?


Brake master cyl kit




Clutch master cyl
 CP-03866
 Girling 3/4", 64067812
casting stamped -  7812   ECHP7
 $80
Clutch master cyl repair kit
Girling SP2186
http://www.racecarsupply.com/html/brakes.html
 $20
Pedal, Accel
 CP-02683

curved metal  pedal dim - 143 x 35 x 2 - radius corners
Pedal, Brake
 CP-02911

curved metal pedal dim - 63 x 50 x 2 - radius corners
Pedal, Clutch
 CP-02676

curved metal pedal dim - 65 x 50 x 2 - radius corners
pad, accel
 CP-03128

repros have poor grid pattern
pad, brake and clutch
 CP-01212

repros have poor grid pattern






cable, throttle
 CP-04190
 length - 1795mm
2.5mm steel cable, length is ball fitting center to cut end
sheath, cable
na
 length - 1550mm
8mm plastic covering OD, 7mm steel sheath OD
ends, cable sheath
 FM-01857

brass cZ, 8.25 ID x 10 OD x 12 length, same as hand brake
nut, adjuster
 DN-00138

8x1.25 steel
adjuster, cable brass
CP-01651

17mm hex, 30mm thread length, 8 x 1.25, same as hand brake
end, ball w/fitting
 na

steel



















additional resources
http://www.resleeve.com/sleeving.htm
http://www.racing-stuff.com/master_cylinders.htm
http://www.nfauto.co.uk/master_cylinders.htm
http://essexparts.com/CatalogPDF/Essex_52~Caliper-Hyd_Rep.pdf - 1 page
www.girling.de
notes from P400S parts book
starting with chassis #4149 a left foot rest was installed .
CP-06126 bracket
CP-03128 rubber pedal cover
with fasteners DN-00567 and RN-03800
this left foot rest can be added to chassis #3829 on forward as well.

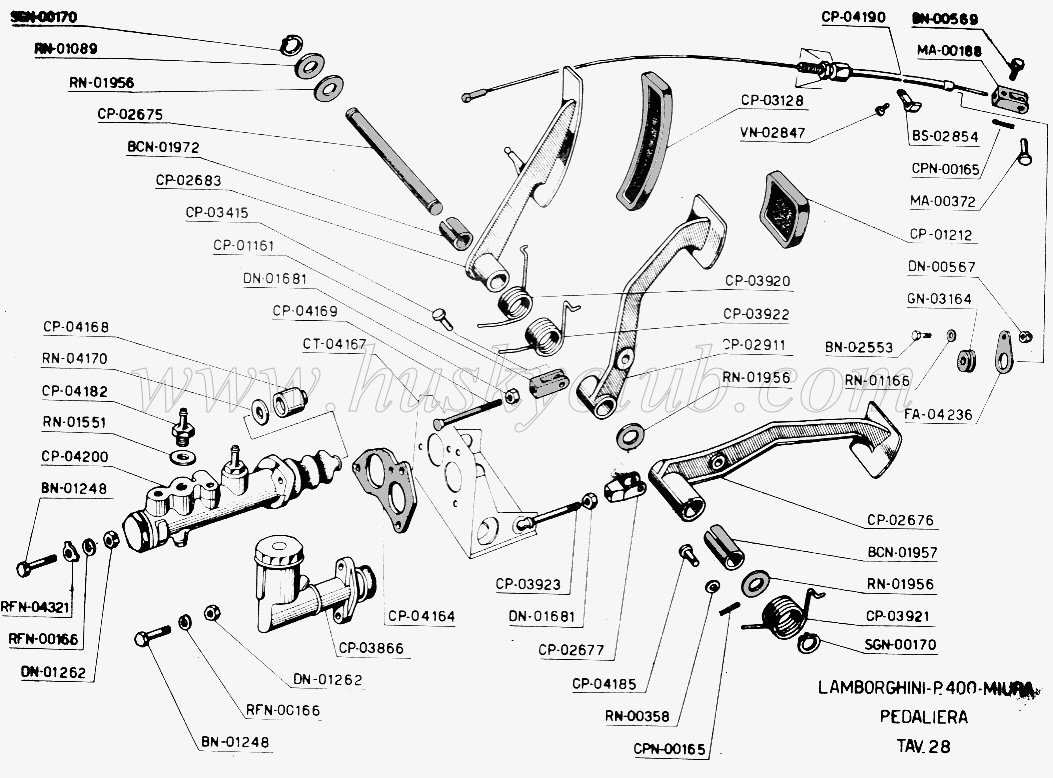

Miura pedal system
 graphics/photo
Pedal bushings BCN-01972 2ea and BCN-01957 1ea in early Miura were a piece of poly plastic, probably Vulkollan flat stock cut to size to fit each pedal. The accelerator and brake take the same width and the clutch took a wider piece. This poly material fails and comes apart, jamming up the pedal movement.

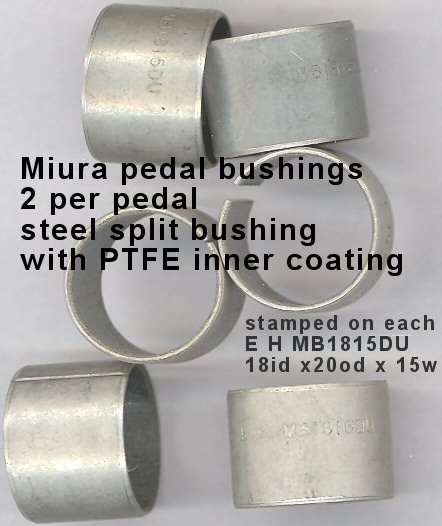

The Miura builds switched to metal backed split bushings during the S series. Two of these MB1815DU split bushings were installed in each pedal pivot. The construction of the bushing is carbon steel with a PTFE inner surface.

The part number MB1815DU, with MB as metal backed, 18 as 18mm shaft size, 15 as 15mm width, DU indicating a Glacier brand split bushing.

For just one of many supply potential - http://www.ggbearings.com/products.asp

To the right is a photo of GTCP supplied pedal bushings, probably 1982 vintage. I do not remember the cost. Click for larger view



Pedal end of throttle cable CP-04190 , showing same brass adjuster as on the hand brake cable

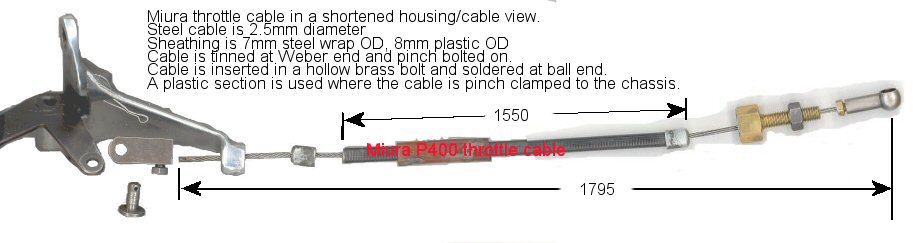

Dimensions for fabricating a replacement throttle cable

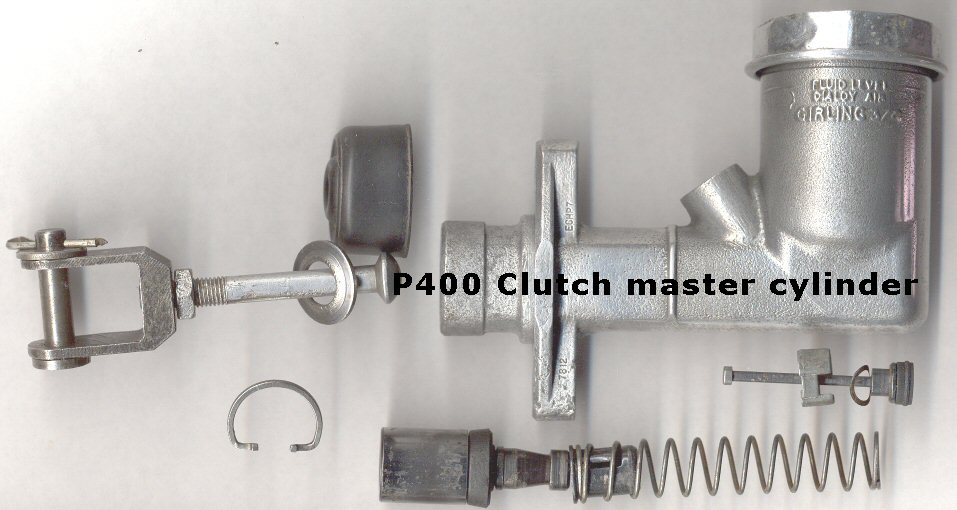

P400 Miura clutch master cylinder - CP-03866

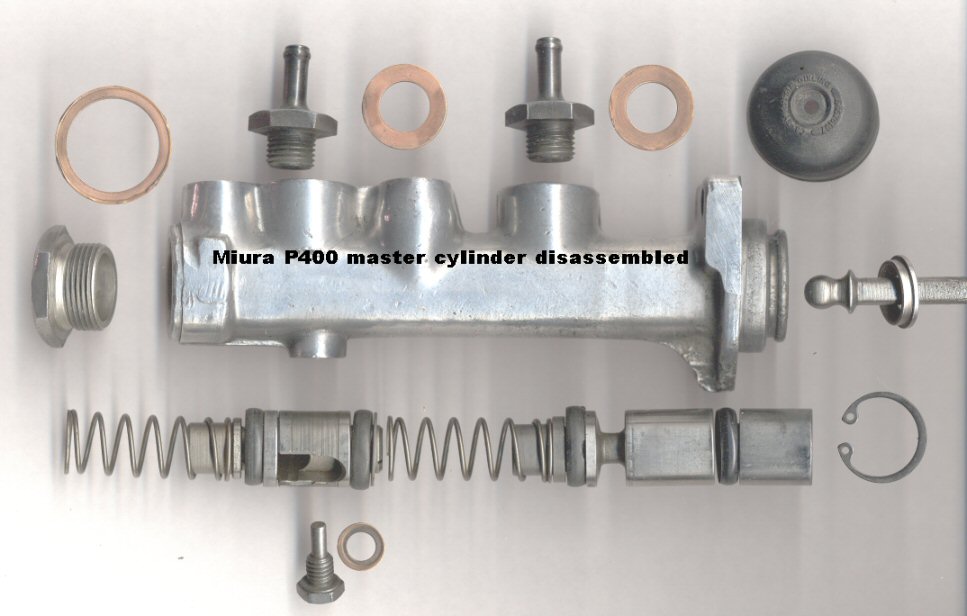

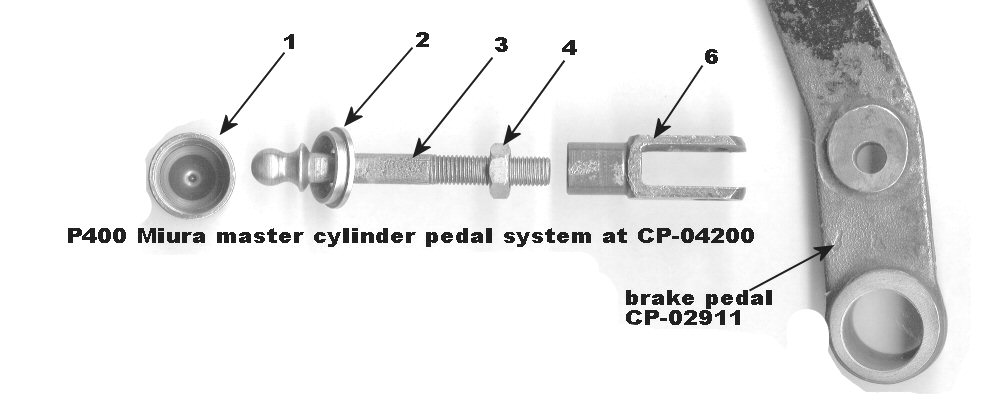

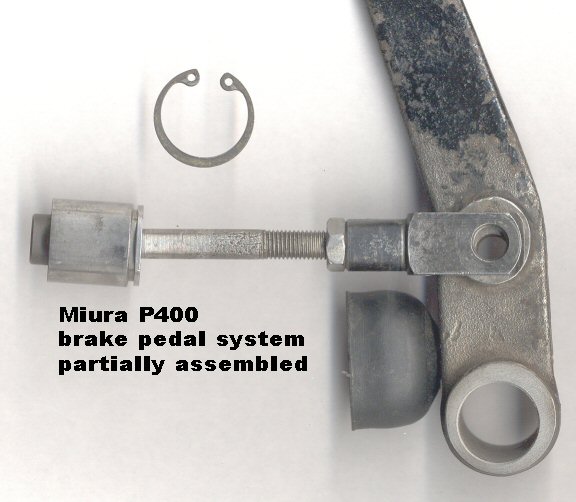

P400 Miura brake master cylinder - CP-04200 or 004204200

thank you to George Girot for technical help
