Description	Lamborghini part number	OEM details	Notes	note 2
pump, electric, Bendix	MA-04213	Bendix, Elmira, #480532, neg.12v	red top	small sediment filter in base cap
cap, gas tank fill	BI-04253	gas tank cap tappo serbatoio benzina bouchon reservoir	black plastic	used on Lambo 350/400, Ferrari 275/330, and ?
pin, strap - 2ea	BI-03081	6 x 60 steel pin, 2mm holes on 56mm center	black
pin, cotter - 2ea	CPN-00155	2mm cotter pins
screw, draw	BI-03084	5 x 0.8 , slotted, cylinder head special	black
pin, strap draw	BI-03079	12 x 30mm, 6mm hole, 2.5deep x 10across recess flat, steel	black
pin, strap draw	BI-03080	12 x 30mm, threaded 5 x 0.8 , steel	black
strap, gas tank short	BI-03747	1 x 30 steel material, 110mm center eye to eye, 12mm width slot thru large eye, spot welded end loops	black paint
strap, gas tank long	BI-03646	1 x 30 steel material, 605mm center eye to eye, 90 bend @118mm from large eye center, 12 mm slot, spot	black paint
filter, pick up	MA-03074	SALVA, 10mm ID x 15.3 OD x 80mm overall length	nylon mesh	see photo

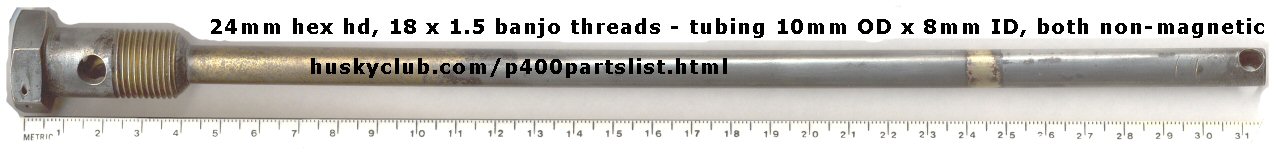

fuel pick up pipe	MA-03667	banjo fitting with brass pipe brazed in	non-magnetic	see photo
gasket, copper washer	RN-00922	18.05mm ID x 30mm OD x 1mm thick

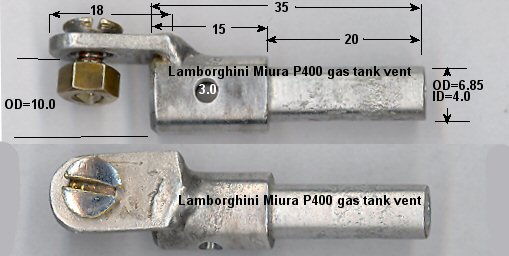

vent fitting	BI-04057	aluminum fabrication, simple straight thru vent
tubing, vent	BI-03954	green, Cavis, 6mm, plastic tubing
screw, machine oval	VN-02359	4.0mm x 0.75 x 10mm, oval head, straight slot, brass, chrome
nut	DN-03343	4.0 x 0.75, brass
clamp, band - 2ea	FN-02168 8830111	steel, simple P loop, 10mm wide, 6mm hole, loop to fit OD of green Cavis vent tubing	black
screw, sheet metal	not shown 8700405	to fasten FN-02168, Panhead, Phillips, sheetmetal screw 4.8 x 9.5 Din 7981 / N
gasket, red fiber	MA-01474	14 x 10 x 2 red fiber gasket ring
gasket, red fiber	MA-01476	20 x 14 x 2 red fiber gasket ring
gasket, copper	RN-00922 8401804	annealed copper washer 18.2 x 30 x 1
gasket, copper	RN-03672 8404001	copper washer 40.2 x 54 x 1.5
gasket, paper	BI-03372 6205360	fuel level sender gasket paper or elastomer
sending unit, Jaeger	BI-03331
float, sending unit		Model A Ford float is a direct replacement for Lamborghini Jaeger float		http://www.mikes-afordable.com

Bendix electric fuel pump: They are still made by Facet (who bought somebody who bought Bendix) and the correct version for the 4.0L Lambo engine is available from several sources.

http://www.facet-purolator.com/mcl/media/technology/hd_pdfs/Cylindrical.pdf

You must be careful in this pursuit of electric pumps - many pumps are 1/8"-27 npt internal thread inlet/outlet and this is not correct!
What is correct and original size is 1/4"-18 npt internal thread inlet/outlet (480532 and 480534 are the only numbers i know of that have these correct inlet/outlet.) look at chart above!

09/2007 - Bendix or Facet numbers are stamped in mounting feet. Number system has been used since 60's. Most times these numbers are hidden by grommets.

Bendix / Facet number	Rating	size	automotive known as	notes	source for purchase 2007	aprox price
480532 12V neg	45gph/5.0psi	1/4 npt	competition red top	early Bendix pump - entire pump dome is painted red, the later Facet pump - red dot sticker pasted on. The OEM Bendix is silver Zinc plated, while the later Facet has been chromated to a gold color. Also a change in the electrical fitting.	Truechoice Motorsports 40 Industrial Park Place Powell, OH 43065 www.truchoice.com	$93

Miura replacement fuel line circa 1976 maybe earlier - #5 ferrules are stamp marked - scovill, made in us, 7325

tool for crimp shown on Miura fuel line (circa 1976) - http://www.fastenal.com/web/products/detail.ex?sku=5229-CV500
ferrule 7325 - http://www.fastenal.com/web/products/detail.ex?sku=03093716543
maybe this is an option for others - i still need a lead on the fittings please

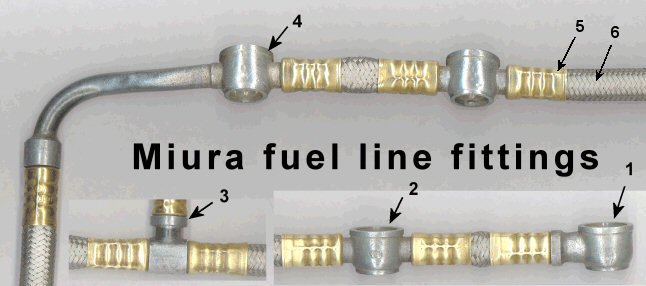

2007 update on fuel line - in order to achieve a more original looking fuel rail, the desired ferrules (same as above) should be silver zinc plated prior to crimp. also the crimp tool should not be so agressive as shown, what is now preffered is a four sided, smooth jaw crimp leaving a smooth crimped ferrule. The finished look is more like the OEM 1967-1972 era fuel rail.

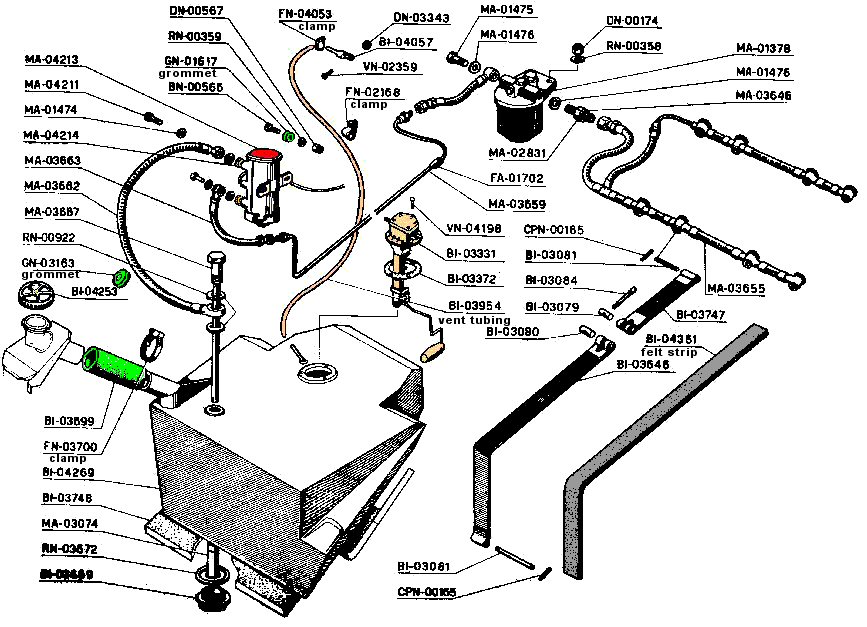

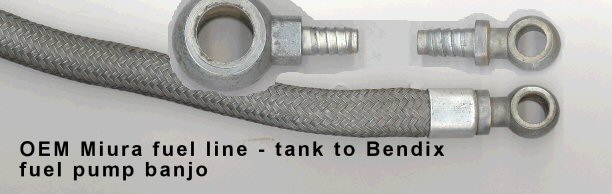

MA-03682 fuel line from tank pipe MA-03667 to the Bendix fuel pump MA-04213/MA-04214. The braided meatal is magnetic, the ferrules uncrushed aluminum, the banjo are different sizes of course but with same threadin for the fuel line. The braid is not skived, and in fact, once the fittings are threaded out, the braid is loose enough to allow slipping off the hose and replacing hose.

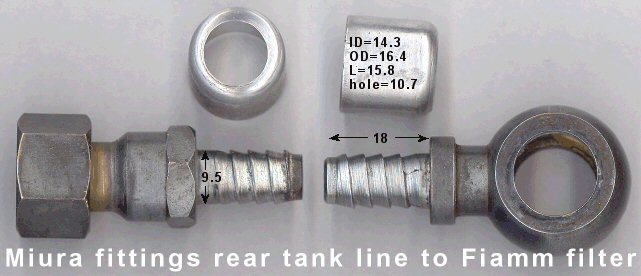

MA-02831 (above arrow is drawn to the wrong item) Same fitting type, fittings are brass with clear or silver zinc plating. dimensions given for the non-crush style ferrules.
MA-03663 fuel line from Bendix to solid fuel line to rear

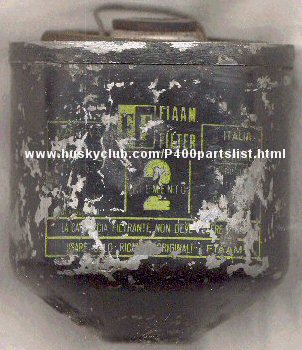

top view Fiamm fuel filter

fuel filter hardware

Bendix "Elmira"

http://www.mikes-afordable.com/page/MFP/CTGY/1067 - three 1928-31 Model A Ford/64-74 Lamborghini float choices for under $10
