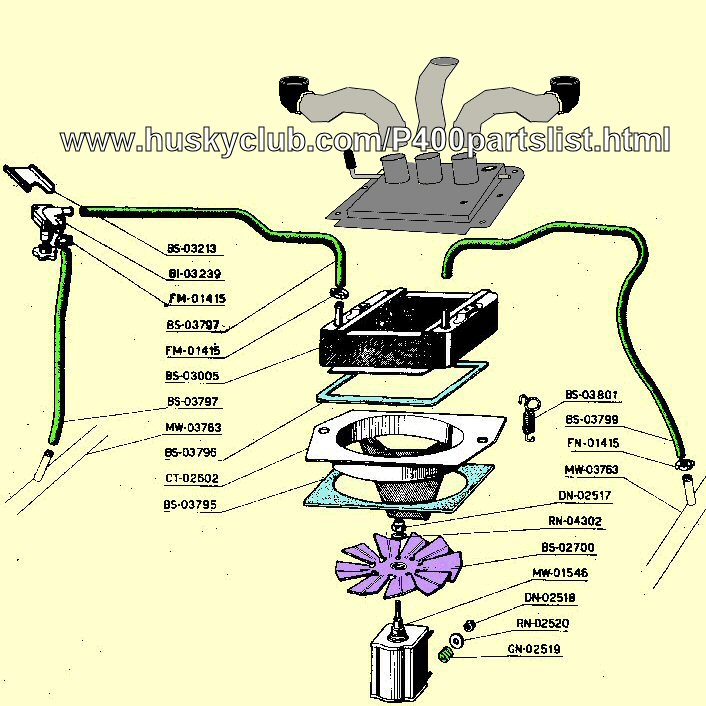

| Description |
Lamborghini part number |
OEM details |
notes |
||
| valve, heater flow |
BI-03239 |
alloy, diaphram valve |
Ferrari 250 and other
Ferrari, Maserati 3500, Alfa Giulietta 750, 101 Giulietta Spider,
Sprint, Lambo 350, 400, Miura, Islero, Espada |
||
| clamp, hose - 6ea |
FN-01415 |
9,14-24 |
|||
| hose, heater |
BS-03797 |
12-13mm |
|||
| hose heater |
BS-03799 |
12-13mm |
|||
| core, heater |
BS-03005 |
embossing on both end
tanks - FIM, Forcellini, Bologna, (ITALY) |
|||
| motor, heater fan |
MW-01546 |
Lucas 3GM, #78378 |
exact same as rad fan,
see cooling |
||
| gasket, core to fan mount |
BS-03796 |
thin foam rubber sheet |
|||
| gasket, fan mount to body |
BS-03795 |
thin foam rubber sheet |
|||
| plate, heater motor mount |
CT-02502 |
sheet steel |
hand brush painted gloss black |
||
| spring, heater core/fan mount |
BS-03801 |
||||
| blade, fan |
BS-02700 |
||||
| rubber, motor mount isolation |
GN-02519 |
||||
| duct, defroster, (not shown) |
40mm id, fiber flex tube |
dark grey |
