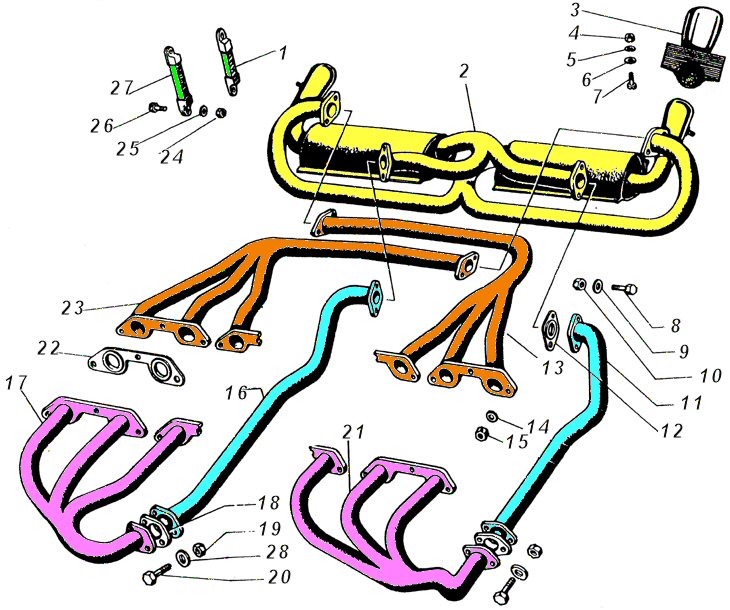

Exhaust System Miura S/SV

tav	Lambo #	Description	quan	$est	more info	notes
1	CM-02089	hanger, rubber strap	2	15
2	CM-08297	exhaust muffler unit	1	2000
3	CM-06108 004406108	Tail pipe, chrome	2	250	ANSA modified	chrome
4	DN-00722 008200401	Nut, M4 Uni 5587, 5s, Z	8	2	tall nut, dadi alti
5	RFN-00724 008410402	washer, split lock id 4.3, Uni 1751, Zd	8	1		Din 127B
6	RN-01166 008400502	washer, flat, 10x5.3x1 Uni 6592, Cat-A	8	1		Din 125A
7	VN-01683 008700407	screw, M4x14, Uni 6108, 8g, Z	8	2		Din 85
8	BN-00643 008100831	screw, M8x30 Uni 5737, 8g, Z				Din 931
9	RFN-00166 008410806	washer, id.8.4, Uni 1751, Zd				Din 127B
10	DN-00406 008200807	nut, M8, Ot.58 Uni 2012, Self-Lock			brass
11
12
13
14		same as 9
15		same as 10
16
17
18
19		same as 10
20		same as 8
21
22
23
24	DN-00567	nut, M6 Uni 7473, Zd, Self-Lock
25	RN-00359	washer, 12.5x6.4x1.6 Uni 6592, 5
26	BN-00566	screw, M6x18 UNI 5739, 5S
27	CM-02088	hanger
28		same as 9
29
30

Jacques, i think there are several muffler systems that would be seen as production original on the Miura series. They all mount on the header pipes in similar fashion. The earliest systems had small mufflers usually round cans, but in later (early cars) these cans could be oval. Usually had the cone section expansion chambers.
As time progressed, i guess ANSA became more sophisticated in production, Miura owners wanted a little more quiet, so the mufflers became slash cut style to fill all available space and became larger as well. I am guessing to avoid the cost of the custom cone sections, the units were fitted with the round end flares, also wrinkle black paint, red inside pipes is seen on replacement systems sold at a dealer. here is a drawing and picture of the earliest system type and the last SV style.

the later systems , altho attractive, have a serious mismatch problem with tail pipe to tail pipe, leading to Louisiana blackened Cajun rear ends.
