Lamborghini 400 GT 2+2 Exterior Lighting

Description	Lambo part #	OEM lens Data	other applications	notes	graphics	Additional info	lens material
Headlights (Euro) right side			Mercedes commercial truck	Mercedes #			glass
Headlights (Euro) left side			Mercedes commercial truck	Mercedes #			glass
Headlights USA inner headlight							glass
Headlights USA outer headlight							glass
turnsignal/running right side passenger side		Altissimo 178.12.89 ~K23315	350, 400, 400 2+2 Maserati Mistral			Upper housing 178. 01. 80 Altissimo #'s base housing 178. 01. 82 gasket 178.11. 00 typically replaced with Fiat Carello lights	plastic
turn signal/running driver side		Altissimo 178.12.99 ~K23315	350, 400, 400 2+2, Maserati Misral			typically replaced with Fiat Carello lights	plastic
side marker front both sides		Altissimo 414.12.18 IGM 1437 ???	350, 400, 400 2+2				plastic
tailights (Euro) right side		IGM2942c2 red IGM2903LPx red IGM2902IP amber	350, 400, 400 2+2 euro NSU Prinz 4 Lancia Zagato	NSU # NSU link		ARIC	plastic
tailights (Euro) left side			350, 400, 400 2+2 euro NSU Prinz 4 Lancia Zagato	NSU #		ARIC	plastic
tail lights USA right side			350, 400, 400 2+2 USA NSU Prinz 4 Lancia Zagato	NSU #		ARIC	plastic
tail lights USA left side			350, 400, 400 2+2 USA NSU Prinz 4 Lancia Zagato	NSU # Hella #		ARIC	plastic

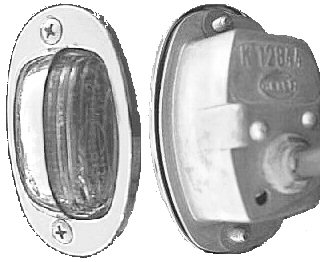

license lights			350, 400, 400 2+2 Porsche 356	Hella #		Hella lens - Hella base - K12844	plastic
back up light		Altissimo	350, 400, 400 2+2 Fiat Lancia Flavia Maserati 3500gti	raised letters lens: ALTO IGM 0730 LAX IGM 1676 PR Altissimo181.12.00		Alto#rubber:36.1055 Alto#base:181.01.00	plastic

Description of existing Lambo	350-0102 Paul	350	400 Interim	400 0517	400 2+2 Jack	400 2+2 lens
Headlights (Euro) right side	Hella					Hella
Headlights (Euro) left side	Hella					Hella
Headlights USA inner headlight					Inside lens, Hella, # 4460, 1-89219
Headlights USA outer headlight					Outside lens, Hella 4463, K11662 2 88870
turnsignal/running right side passenger side					Altissimo 178.12.89, K23315	Carello - 11.534.716 made in Italy, 35018 IGM 1691 LAX Chrome metal housing: 11.535.580 Reflector with socket: 11.535.145 Lens (clear) 18.535.716 SAE R61 Gasket: 11.535.523
turn signal/running driver side					Altissimo 178-12-99, K23315	A1 E3 7138 P25-2 35018
side marker front both sides
tailights (Euro) right side						ARIC
tailights (Euro) left side						ARIC
tail lights USA right side
tail lights USA left side
license lights
back up light	none

Lamborghini 400 GT 2+2 Interior Lighting

Description

Lambo
part #

OEM
data

other
applications

Notes

graphics

additional
info

350
0102

400
0517

400
Jack

400
Fred

engine compartment front

interior dome light

mid 60's Ferrari interior
Miura trunk light

trunk compartment light

Espada light info page - http://www.400gt.com/vlg/vlg_files/espada/Espada_Lighting.gif

Comments taken from VLG -
1) I looked at the 400 driver's side driving/signal light (on the bumper) and of course it has completely different numbers. There is no xx.xxx.xxx listed...instead:
A1 E3 7138, P25-2 , 35018 (that's the same as on the other lens) Thanks, Fred

2) There is a lot of confustion regarding these turn signal lights! The 850 light isn't correct for the 350/400gt. It should be an altissimo not carello and the lens has a different shape. The 850 light is the same as the euro bora, ferrari 330 gtc. Many 350/400 owners have replaced the original altissimo lights with the fiat setup since they are easier to find. Jacques

3) The first 350’s were not produced with back up lights or toggle switches for them. Does anyone know more or less which serial number would have been the first to have a backup light installed coming off the production line? Paul

4) Just been browsing some old mag's.The July 24 1965 edition of Autocar features a 350 GT with backup light, whereas the cars in the July 1965 issue of both Car magazine and the July 1965 issue of Road & Track do not feature these lights. So, my guess is that about July 1965 was a turningpoint, backup light-wise... Marcel

5) euro version red/red/amber - Here are the numbers on my rear passenger Hella taillight lens: IGM2942c2 red, IGM2903LPx red, IGM2902IP amber, Jacques

6) I finally looked at the lights on my 400 which (I believe) are original. The headlight lenses are: Outside lens, Hella 4463, K11662 2 88870. The Inside lens is also Hella, # 4460, 1-89219. The turn signals (photos attached) are: Drivers side, Altissimo 178-12-99, K23315. The Passenger side is Altissimo 178.12.89, K23315. It is dark out there right now but when there is more light, I will try to read the numbers on the lower part of the turn signal lenses. I may have to remove the fixtures to do that. Cheers, Jack

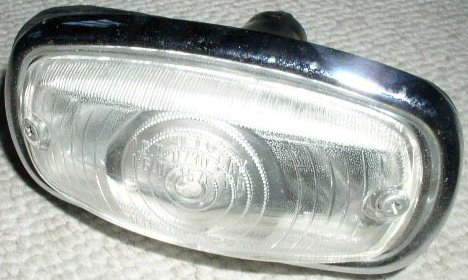

7) here is the backup light for the 350/400gt. <http://maseratisource.com/ebay101/llllight.jpg> Alstissimo numbers on the lens: ALTO, IGM 0730 LAX, IGM 1676 PR, Altissimo 181.12.00, Altissimo number on the rubber:36.1055, Altissimo number on the chrome base:181.01.00
you're welcome to use the photo., Jacques

8) Hi VLGers, All this talk about Carello lights lit up a long-unused part of my memory banks, so I took a trip to the attic and found a new-in-box left-side Carello turn signal/backup light unit. I bought it almost 30 years ago for an Alfa I no longer have, and it's in an Alfa box with part number 102.05.65.073.00, indicating an early 60's 2000. I know the same unit was used on many subsequent models. It appears to be the same unit posted to the Photos section. For what it's worth, here are the Carello numbers for the various components:
Chrome metal housing: 11.535.580
Reflector with socket: 11.535.145
Lens (clear) 18.535.716 SAE R61
Gasket: 11.535.523
I also found a brand new amber lens, also left hand, with the same part number. If anyone is interested I can email hi-res pictures. Mike Roberts Espada 7210

NSU 1000 Euro version
