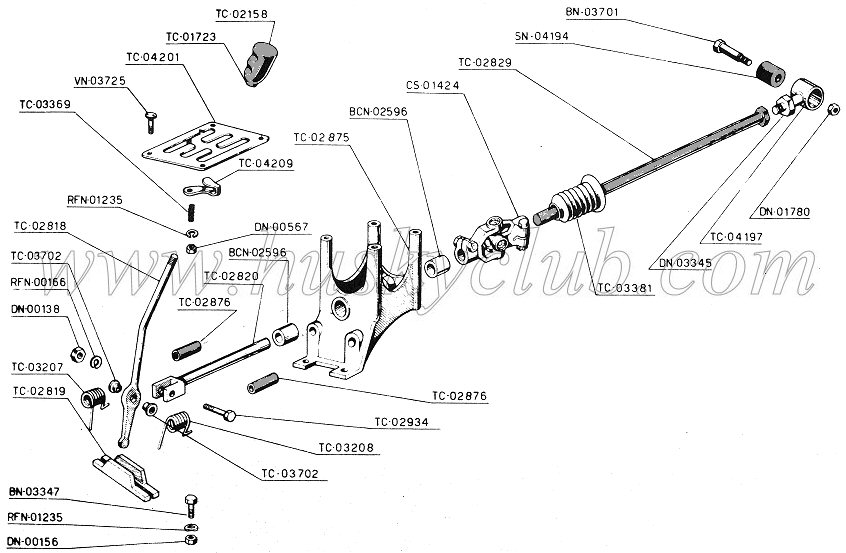

| Description |
Lamborghini part number |
OEM manufacture part number |
notes |
notes |
|
| cap screw, special shoulder bolt |
BN-03701 |
shoulder bolt, 17mm head, 14mm body dia, 31mm shoulder length, 8x1.25x13 threaded end portion |
yellow zinc |
||
| cap screw, shift track slot |
BN-03347 |
||||
| cap screw, shifter pivot |
TC-02876 |
||||
| washer, |
RFN-01235 |
||||
| washer, split lock |
RFN-00166 |
8mm, split lock |
black |
||
| bushing, shifter isolation |
SN-04194 |
steel encased rubber with steel sleeve, 14id x 27od x 25L, |
|||
| nut, nylock |
DN-01780 |
8 x 1.25 nylock nut |
yellow zinc |
||
| nut, left hand jam |
DN-03345 |
14 x 1.0 left hand thread, 8mm thick |
black |
||
| nut, nylock 6mm |
DN-00567 |
||||
| nut, |
DN-00138 |
||||
| rod end, clevis |
TC-04197 |
27mm id x 35mm od x 25mm wide - threaded 14 x 1.0 x 40, left hand thread |
press fit with SN-04194 |
||
| lever, gear shift |
TC-02818 |
290mm tip/tip, 10 x 1,5 threads |
|||
| knob, shift |
TC-02158 |
||||
| jam nut, shift knob |
TC-01723 |
10 x 1.5 threads for gear lever |
|||
| switch, back up light (not shown) |
TC-01873 |
threaded hole in shift tower is 12 x 1.25, 11mm depth |
F change to gear lever, shown here as found on ebay sale Oct 2004.
