1969 UK brochure - the only rectangular Carello (5¾" x 3") listed is above, all else was round. The usual xx.xxx.xxx Carello
type part number was not to be found anywhere in the brochure for this 66 type lamp. Below is price and info from same brochure.

Parts breakdown for PF JOD r

Description	Carello #	material	finish	graphic
Complete clear fog	02.392.000
complete yellow fog
complete clear spot
main body w/rivited mount, bolt, upper hooks		steel	chrome
lens assembly, clear, fog	02.390.816	glass	clear
lens assembly, yellow, fog		glass	yellow
lens assembly, clear, spot		glass	clear
bulb, marked 12v IRIS SP15 - modern H1, 55watt, #448
clip spring, bulb holder, metal
terminal, bulb attach
wire, bulb power
clip, lens holder, plastic		plastic	grey
screw, clip lens holder - 4 x		brass	cZ
mount ball socket		plastic	grey
mount wedge for ball socket		plastic	grey
washer, flat, mount - 11.9 x 20 x 2		steel	cZ
washer, split lock, mount - 10.35 x 16.85 x 2.3		steel	cZ
nut, mount , 10 x 1.5		brass	cZ
stoneguard		plastic	white

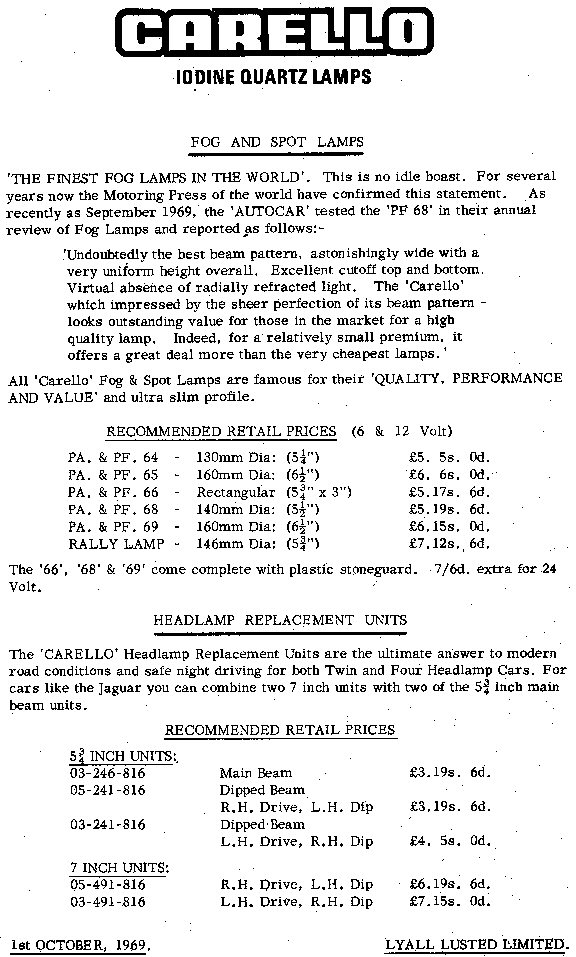

1969 UK brochure price list and info.
Lydall Lusted Ltd - Vincent Works - Dorking - Surrey - Dorking - 4091

2 panel opens to 4 see below

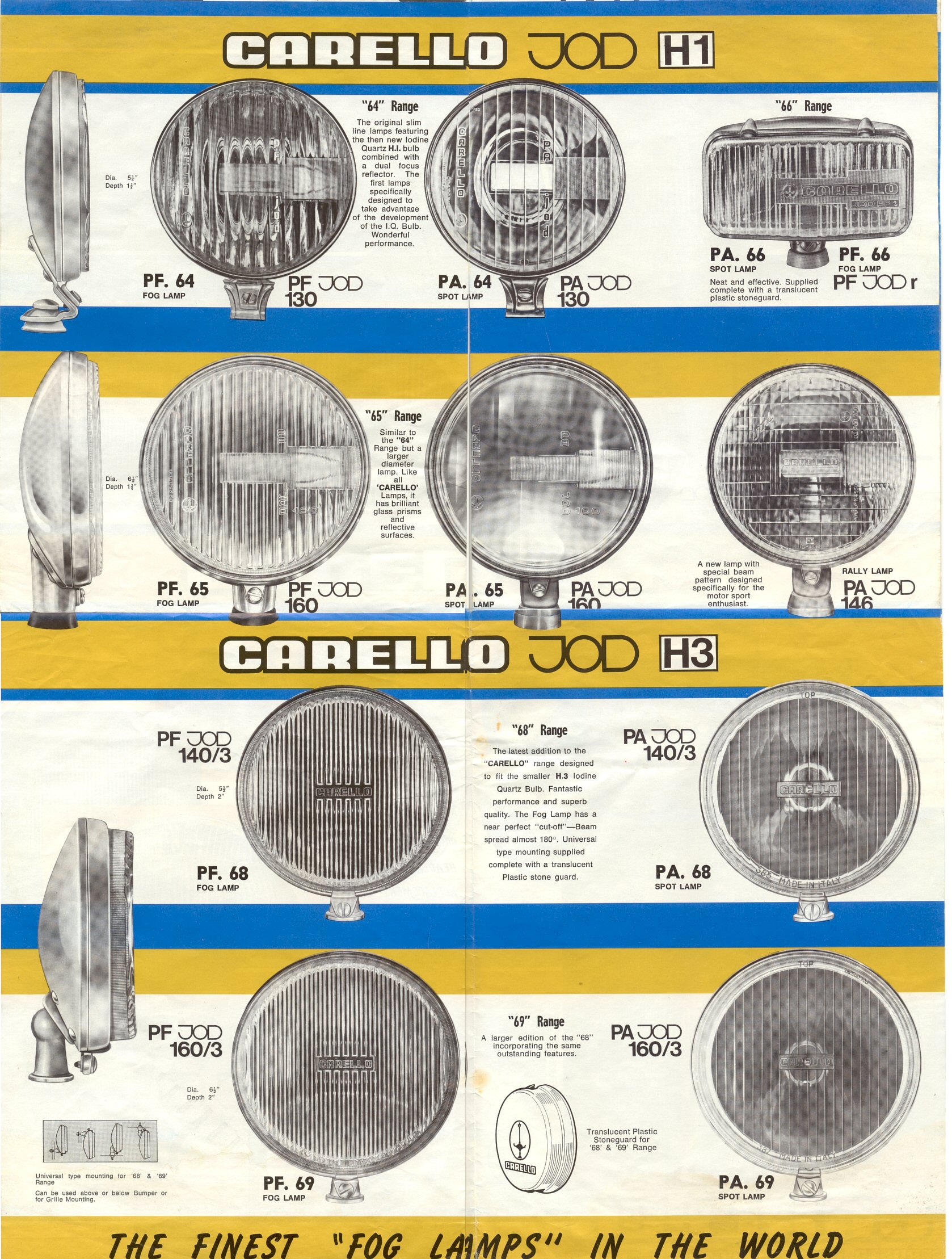

4 panel poster size Carello brochure

note - brochure has no numbers, folds open to poster size 16"x23", black and white except for blue and yellow graphic stripes running thru.
date only found on price list as in jpg above.

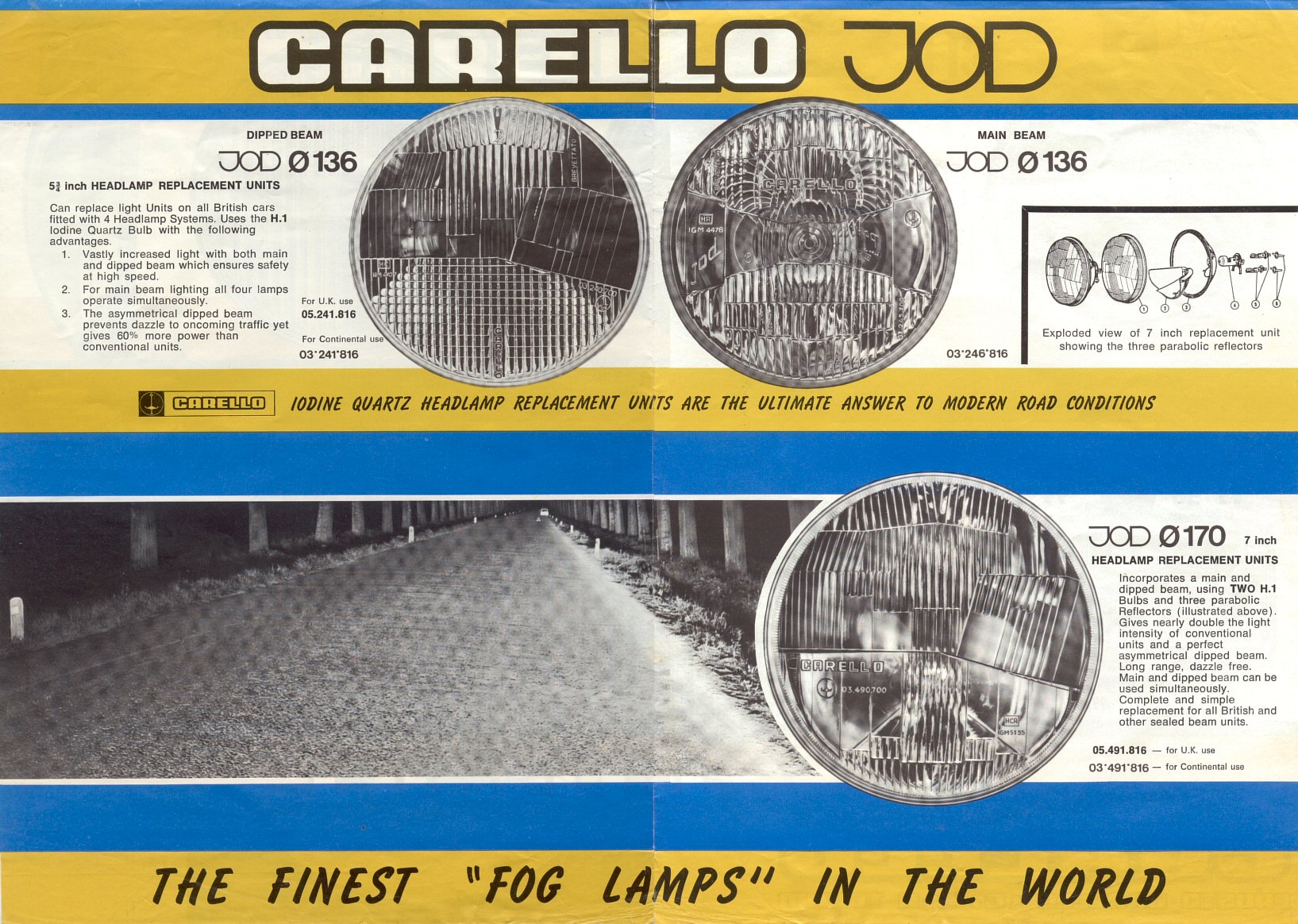

Headlamps (shown in 2 panel view)- The 136mm(5¾")(4 lamp sys) and 170mm (7")(2 lamp sys) JOD headlamps, also in this brochure, indicate a UK unit and a Continental unit because of left hand right hand drive. They are not sealed beams and use a triple parabolic reflector. However , for reference, the JOD headlamps are marked on the glass 03.490.700, brochure catalog # 05.491.816 for U.K. and #03.491.816 for Continental.
Please send me more info to include here - p400@comcast.net

additional table of Road & Track mag info 1968, not directly related to P400. A magazine article on current (1968) aux lights.

Description	number	size	rate	type
Carello	02.392.000 clear	5¾ x 3 x 2	150,000	Q-i	R&T June 68
Carello	02.382.000 amber	5¾ x 3 x 2	150,000	Q-i	R&T june 68
Hella	Helios #139 ZFH CC	5¾ x 2¾ x 3	na	Q-i	R&T june 68
Hella	Helios #139 ZNH CC	5¾ x 2¾ x 3	na	Q-i	R&T june68

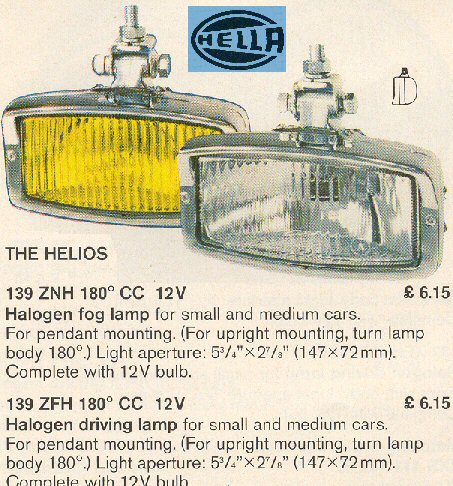

Hella 1971 brochure#391.01/6/71
Hella Automobile Equipment Ltd
Hanworth Lane. Chertney. Surrey

additional Hella model photos for reference

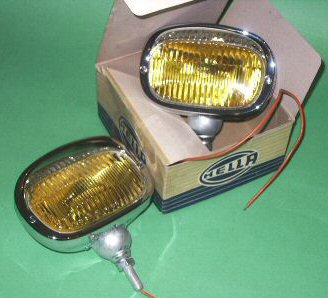

Hella 127 model

The large mount on the bottom of these 127's stands them up quite high. i am not sure of 127 designation.
i have not seen these in use on P400 to date.

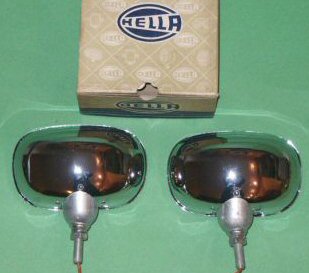

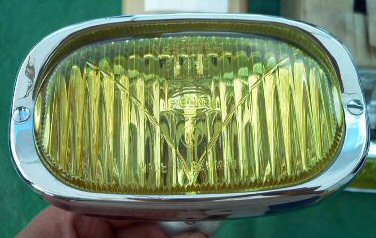

Hella 128 clear driving ?

Hella 128 yellow fog?

i have seen both of these Hellas 128s in use on P400 and P400S.
i have seen advetisement for clear and yellow lenses, but i thought the reflector was clear or yellow with the lense remaining clear.
Does anyone have a brochure for Hella 128? instruction sheet, parts list, engineering drawing, wiring diagram, install sheet, bulb listing, etc?
Hella 128 info i have as result of owning 2 old ones (that look the same until examined) -
#1 lens numbering and script - Hella, 66983 , Made in Germany, A, ~K1112, 13-66893, IGM2042PN, SAE F64, oben
#2 lens numbering and script -Hella, 66983 , Made in Germany, A, ~K1112, 10-66893, IGM2042PN, SAE F64, oben
2 screws to hold ring - 4 x 0.70 x 15mm, oval head machine screw, slot type, narrowed pointed end to help assembly of light, screw held on ring with fiber washer.
#1 bulb marking - IRIS-12v, 15, E2, made in france, H1 (maybe H4)
#1 reflector marking - E1.3751.04 (appears yellow plating )
#2 bulb marking -
#2 reflector marking -
single blue lead coming from center of mounting bolt.
thread on mount bolt is 10 x 1.0
128 lense ring is a casting, chrome plated
128 body is chrome plated sheet steel

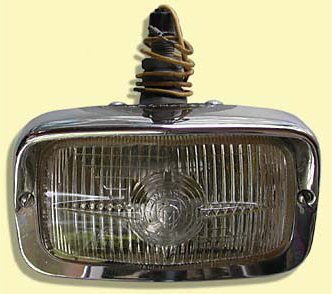

Marchal was seen in use on very early P400s.
anyone have details on what these are? model number? years of manuafacture? availablity?
Possible info
Marchal 653
Marchal 658
other users Ford Mustang, Ferrari
