Power actuated windows-| Item |
Lambo number |
oem details |
Notes |
Other OEM applications |
comments |
| glass, driver |
5 hole |
see above marking for side glass etch |
none |
||
| glass, passenger |
5 hole tint, light green, 5.75mm thick | see above etch |
|||
| channel, steel , glass attach |
1.5mm steel |
||||
| roller assemblies for track |
nylon V pointed rollers, 27mm OD, 5mm bore |
7.25mm width, 45 degree taper |
|||
| roller hardware |
|||||
| plate, steel , glass attach |
|||||
| gasket, glass mounting |
|||||
| hardware, glass attach |
|||||
| motor, cable driver |
Ducellier |
Fiat |
|||
| motor, cable pass |
Ducellier |
Fiat |
|||
| gearbox, drivers |
FISPA |
Fiat |
|||
| gearbox, pass |
FISPA |
Fiat |
|||
| cable |
2.5mm steel multistrand cable, approx 2 m |
||||
| ferules, cable attach |
to fit cable |
swaged/crushed onto cable ends |
|||
| pulleys, cable top and bottom |
aluminum cast |
||||
| stud, pulley mount |
|||||
| frame, gearbox |
3mm steel plate |
||||
| frame, top bar |
steel |
||||
| frame, bottom bar |
steel |
||||
| frame. foward bar, grooved |
aluminum |
||||
| frame, rear bar, grooved |
aluminum |
||||
| machine screws, frame corners |
6mm flat head steel |
||||
| bolts, gear plate to foward frame |
6mm hex head steel |
||||
| studs, mounting |
fastens frame to door structure, lower |
||||
| screw, mounting |
fastens frame to door structure, upper |
||||
| cover, window crank |
plastic, black |
||||
| handle trim, window crank |
plastic, black |

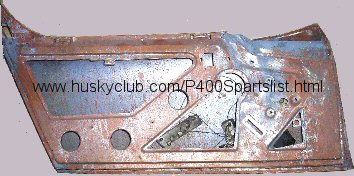

Drivers door with mech loose inside - thanks to Rick Botting for photo

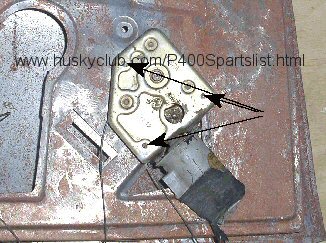

motor
and gearbox laid on door in apprx position. you can see upper stud and
upper hole. This motor/gearbox would be moved slightly upward to
match holes. Ducellier elec motor, FISPA gear box.
