Lamborghini Miura Windshield Wiper systems -
Miura Lucas windshield wiper motor, gearbox, park switch, etc-
most photos on this page are clickable for larger view
Lucas part numbers
Application
 P400 Miura #1-#10
 P400 Miura #11-300
 P400S #301-762
 P400S/SV replacment
 notes
 Diagram

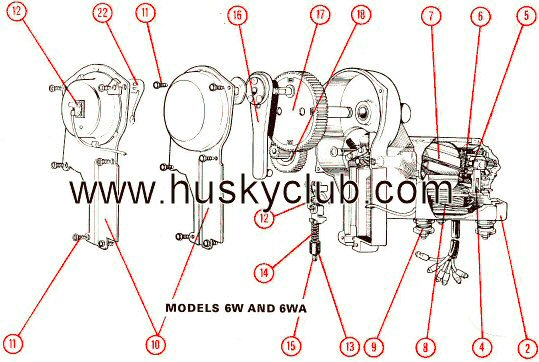

Gearbox/motor assembly
 6W, 54071276
 6WA, 54071417B

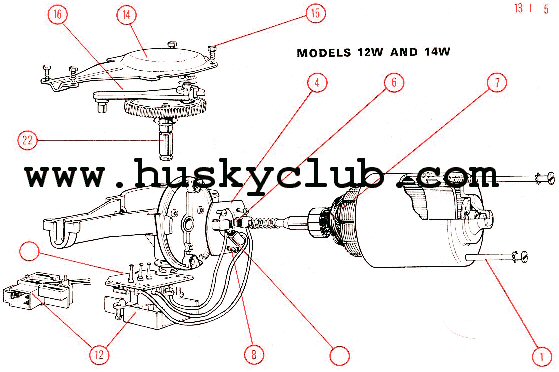

 14W, 54071545B
 14W, unknown *

motor assembly
 75423D
 75593D
 75646x
 75664x
68-69 AH Sprite
68-70 Austin America
73-75 Austin Marina
72-76 Jensen H
68-73 Lotus Elan
68-76 MG Midget
MGB
1. bolt, through fixing
 54100606
 54100606

2. cover and bearing
 126444
 126444

3. screw connection earth
 126444
 ------

4. brushgear
 743171
 743171
 54701528
 54701528
5.      brush set
 729367
 72967

6.      spring, brush
 735631
 735631

7. armature
 54712768
 54712768
 54702572
 54702572
8. field coil
 54715163
 54717435

9 studs, fixing set
 54710127
 54710127

10. cover gearbox
 54712772
 54712774


11. screw, cover fixing
 186144
 ------

12. switch, parking

54701575
 54701575
13. sleeve, adjusting



14. spring, adjusting screw



15. screw, adjusting



16. rod, connecting



17. shaft and gear



18. pinion and gear
 54715725
 54715725
 -------
 -------
* not sure of how direct this replacement is, but it is (motor/gearbox) seen installed in SV models.
helpful link to Moss Motors - http://www.mossmotors.com/Shop/ViewProducts.aspx?PlateIndexID=29344
An article on rebuilding Lucas Wiper system
i need the Lucas numbers off your Miura Lucas wiper motor systems as well as drive, external arms, blades, etc....thank you

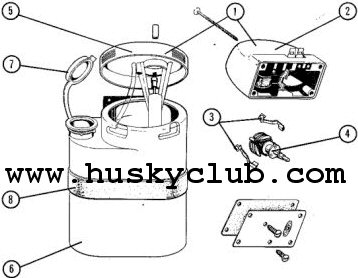

Miura Lucas windshield washer motor, pump, tank, etc-


     Model
 Lucas Screen Jet
    5SJ
Notes
all Miura
Diagram

Complete washer unit
54071432
 12 volt
1
 Motor and pump
 78454
2
      motor
 54700489
3
           brush set
 54711077
4
           armature
 54700377
5
      cover and pump
 54700286
6
 Jar, plastic
 54713810
7
 cap, filler
 54713627
8
 bracket and strap
 54713814
-
 accessories kit





other applications for this complete 5SJ unit are - Jaguar XKE, Triumph TR6, Pantera, many others.
helpful TR6 link to Moss Motors - http://www.mossmotors.com/Shop/ViewProducts.aspx?PlateIndexID=32923
Lucas wheelbox for Miura
no
 Description -
Lucas part numbers
 P400 Miura
 P400S Miura
 P400SV
Miura
 Notes
         Diagram
-
 wheelbox, complete
 72775A
68-69 AH Sprite, MG midget
 72714D
 72839A


1
 spindle and gear
 54713662
 740786
see above for app
13.75mm dia knurl
3
 nut, wheelbox fixing
 54130691
 153511
see above for app
8 sided nut! **
black on P400
shiny chrome on S, SV
4
 bush, front
 -

black on P400 ***
chrome or black on S, SV
6
 washer
 740882

see above for app
7
 bush, rea
 -

factory trimmed, very crude
9
 nut, cover fixing
screw
 54131266
110714
see above for app
-
 casing, motor to wheelbox



DR type, ridgid tubing, requires fitting on motor end
-
 casing, whbx to whbx



DR type, ridgid tubing, cut to length
-
 rack, wheelbox drive



standard wire wrapped cable to form rack - Lucas
if you have pulled your wheelboxes and find then marked with a different number (other than 72775) , please let me know.
thanks - more wheel box info below in notes
helpful link to Moss Motors - http://www.mossmotors.com/Shop/ViewProducts.aspx?PlateIndexID=29344
** BE AWARE - Miura uses an 8 sided nut on the 72775 wheelbox - this is because other wheelboxes that look just the same have different threads and use 6 sided nuts. All automotive users of 72775 wheelboxes use 8 sided nut. In any case - be very cautious in threading these items together no matter what you get .
wheelbox nut info
*** P400 owners will notice that the chrome is all scratched thru on their chrome bezels. This is so black paint can stick more readily to the surface. On the inside of the bezels you will notice oem black paint remains as well
Miura washer spray nozzles
no
 Description
 Lucas part
number
 Notes
 Diagram
 other applications
-
 assembly
painted black on P400
shiny chrome on S/SV
Lamborghini 350GT, 400GT, Islero, Espada S1, S2, S3

screw, spray
flat sided on threaded portion, 2 sides
2
 nut, split


3
 washer, copper sealing
2 ea, each side of split nut
4
 head, spray
bullet shaped, flat side
5
 washer, curved trim
domed washer
6
 gasket, rubber


7
 washer,  lock

internal tooth lock, 6mm
8
 nut, fixing, 6mm
6.0 x 1.0
9
 tubing, 3mm plastic
clear plastic

10
 "T", plastic ? metal?



What other automobiles use this spray nozzle assembly?
Anyone have a catalog listing, catalog picture etc, of this nozzle assembly?
Miura Lucas wiper and washer switch
no
 Description
 Lucas part
number
 Notes
         Pictures
other  applications?
1
 Windshield Wiper switch
31714A
35587


2
 screen washer switch
marked 295003


3
 knob, ww switch
HNP press for wash











Miura  wiper arms and wiper blades
no
 Description
 part number
         notes
 pictures
 additional
1
 arm, wiper,
passenger
Lucas? marked underside - made in England
P400 painted black
S/SV satin silver, some are black
end bent to right
15"=380mm total  overall length
13.75mm id on mount hole
1A
 arm, wiper,
driver
same as above
end bent to left
15"=380mm total  overall length
2
 blade assembly
marked - Carello licenza Trico
satin silver, some black
wire and sheet metal type mechanicals
15"=380 overall length
3
 rubber, blade
ss metal and rubber, ss clip
375mm rubber
I need help with the following -
Lucas or Carello/Trico wiper arms?
Carello/Trico blades ?

I need help with the following -
Lucas or Carello/Trico wiper arms?
Carello/Trico blades ?

also, if you own a Miura S, i would like to know if you have a round or square windshield wiper motor? and if possible the stamped marking on the gearbox cover easily seen, in plain view. thanks
http://www.miuraworkshop.com
comments on early P400 wiring to windshield wiper switch -
 like my p400, and i think correct -
power to Windshield Wiper  is
green from fuse block #3 fuse (switched)  goes directly to ww motor wire. (not to switch)
power for Windshield washer
yellow /black from fuse block #3 fuse (same) goes to wwash motor.

four (4+loop) wires go to ww/ww switch
red
brown
black
black/white (with short loop off)

terminal 11 on switch - red to ww motor
terminal 5 on switch - brown to ww motor
terminal 4 on switch - black/white to remote chassis ground, a loop is hanging from this that goes to switch below.

bottom switch - black to washer motor
bottom switch - black/white loop from terminal 4

let me know if it helps

 11/05/05 - Just some info concerning miura parts references & sources. - Windshield wiper system :
On car  #4635 (543), the motor it stamped 75646D
On car  #4846 (616)  (believed first SV delivered to a customer...) . On his car, the wiper motor has the same number 75646D.
But concerning what you call "wheelboxes", you mention n°72775A.
On #4635 (Sep 02, 1970) both wheelboxes are stamped  - 72714D
On #4846 (Mar 08,1971) both wheelboxes are stamped with -  72839A

added interesting link 12/19/08 - http://www.s-v-c.co.uk/prod_wipers.html
