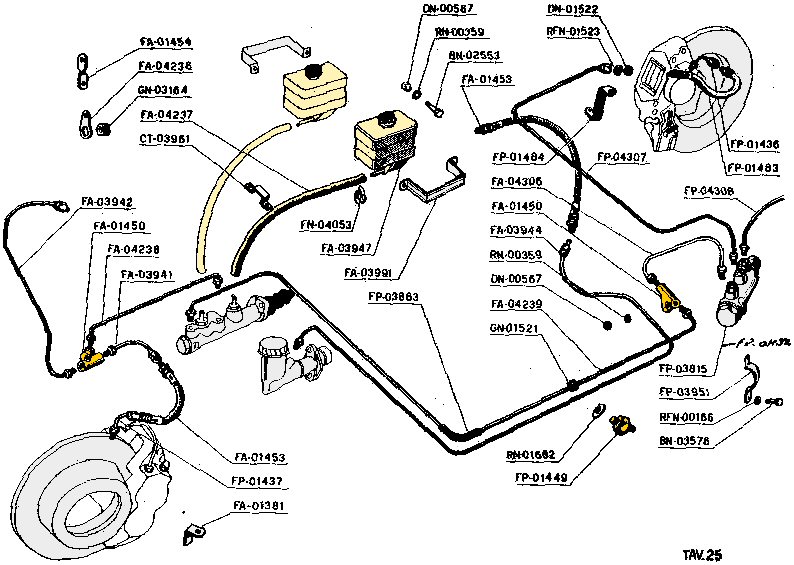

P400 Miura Brake system

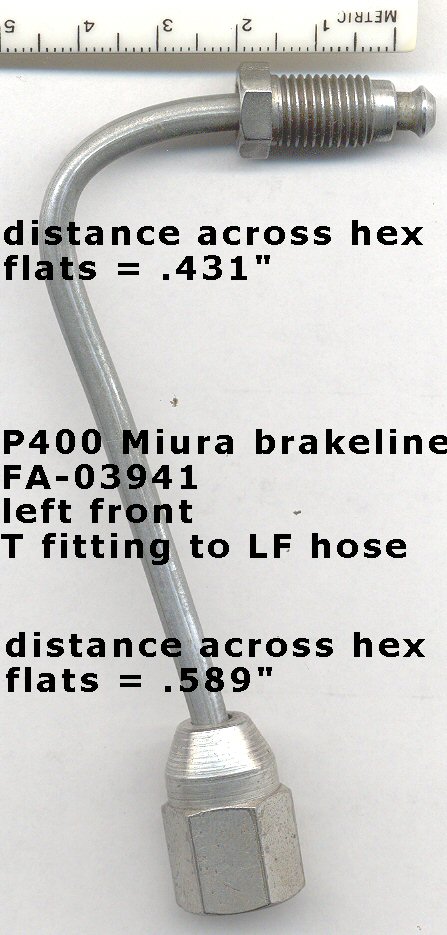

link to P400 brake line details
Description
Lamborghini
part number
Lucas/Girling or OEM
part number
alternate
part number
graphic

Notes
approx
cost

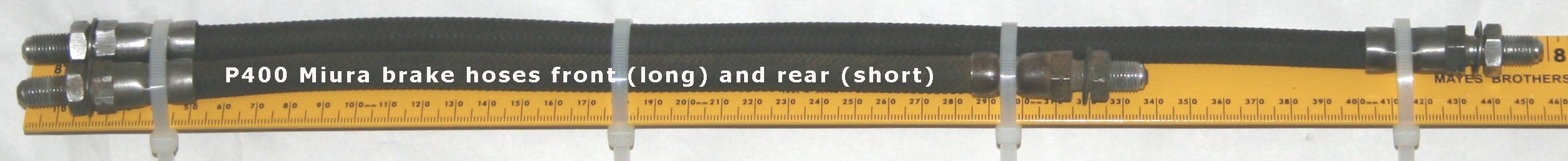

front brake hose - 2ea
FA-01453
64047362

A=3/8x24, Y=455mm, X=410mm

74047400

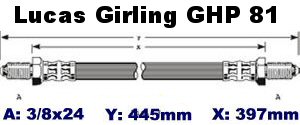

GHP81

68-73 Jaguar XKE front
68-73 Jaguar XJ6 front
$25
rear brake hose - 2ea
FP-01483
64047356

A=3/8x24, Y=337mm, X=290mm

74047464

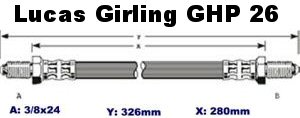

GHP26

68-73 Jaguar XJ6 rear
$15
brake pressure/brake lite switch
FP-01449
003201449
Lucas 34619
model 2SH
3/8"x24

CONT.STOP.FRENI ENS10066


same exact application -
Aston Martin DB5, DB6, DBS
Hillman Husky, Super Minx
Humber Super Snipe, Imperial
Rover 3L Mk11&111 65-67
Rover 2000, TC 64-71
Lotus Europa 2+
Sunbeam Alpine/Tiger 63-71
Sunbeam Arrow & Imp
GT 400 2+2, Islero, Espada, Jarama
Norton and other British cycles
Saab
$35
washer, copper gasket
RN-01682
008401008
Copper Washer 10x15x1
ROND.10X15X1 RAME




clutch slave hose - 1ea
FA-01453
64047362
A=3/8x24, Y=455mm, X=410mm
74047400
GHP81

68-73 Jaguar XKE front
68-72 Jaguar XJ6 front

remote resevoir hose/tubing
FA-04237





rear brake pressure limiter valve
FP-03815
FP-04375
Bonaldi
Bonaldi




master cylinder remote reservoirs - 2ea
FA-3947
STARS 100701, white plastic, size~ 78x55x50




bolt, hex, m/c remote res - 2ea
BN-02553
008100822
6mm
Screw M8x60 Uni 57378g/Zd




washer, m/c remote res - 2ea
RN-00359
008400606
6mm
Washer 12.5x6.4x1.6 Uni 6592/5




nut, nylock, m/c remote res - 2ea
DN-00567
008200606
6mm nylock
M6 "Uni 7473 Zd" Self-Lockin




washer
RFN-00166
008400606
Washer D.8.4 Uni 1751/Zd



bolt
BN-03578
BN-01309
008100828
bolt to hold pressure limiter
Screw M8x45 Uni 5739/5s/Z




washer, corragated
RFN-01523
008411004
Corrugated Washer
ROND.DENT.64140087




nut, brake hose
DN-01522
008200903
3/8"X24 "Unf" Special Nut
DADO SPEC.3/8"X24 UNF

























link to fittings, tubing, and brake line technical - http://www.fedhillusa.com/pages/709978/index.htm
link to brake tubing discussion - http://web.dimebank.com/tech/BrakePlumbing.html

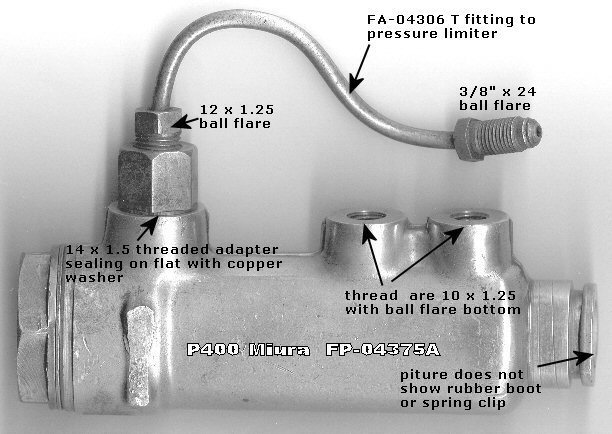

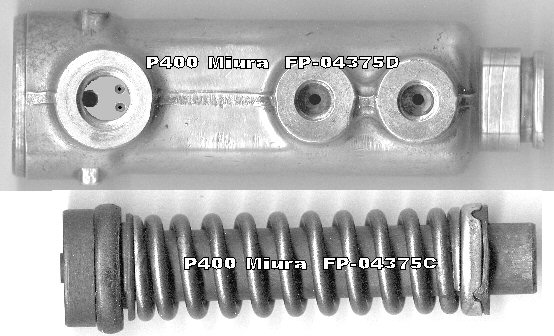

Miura P400 rear brake pressure limiting valve



A source for the elastomer parts (D-ring and square ring) are needed. please contact me




cast info on plastic is -
STARS
100701

there is a logo with a star in a circle like a Texaco logo

need info to fill out table
