P400 clutch




Description
Lamborghini
part number
OEM manufacture
part number
notes
alt supply
part
approx
cost
Clutch slave cyl
TF-04503
Girling 7/8" slave



Clutch slave rebuild kit

Girling SP2029

http://www.racecarsupply.com/html/brakes.html

bearing, throwout
CSN01864
NDH  3L10  JSA
50id  x 80od x ??width

bearing, shaft end
CSN03633
SKF  6205 2RS1
25 x 52 x 15


plate, pressure
TF-04003
type 9/9½
Borg & Beck Co Ltd, England, Leamington Spa


plate, friction
TF-05449




slave cyl shim
TF-04252

1.5mm thick aluminum


washer, thrust - 2ea
RN-01956
8401806

18 x 26 x 1.5
vulkollan pedali
same as pedals

bushing, DU style
BCN-03630

MB1820DU, 18 x 20 x 20
see bushings at bottom of page

pin, split roll
SEN-00941
008900603


Spina S6x28


pin, clutch bracket
TF-03613

18 x 124 with 6mm hole for roll pin 15mm from one end

$75

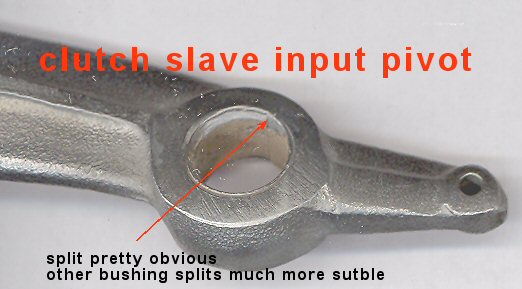

This is the small end of TF-03602 clutch lever. The split bushing is showing some material missing from the top portion of this PTFE lined bushing. No lube fitting and completely ignored by owner and mechanic make this bushing a high failure item leading to poor clutch feel.

See the mating clutch slave cylinder clevis and pin below. No wear visable on pin, clevis undetermined.

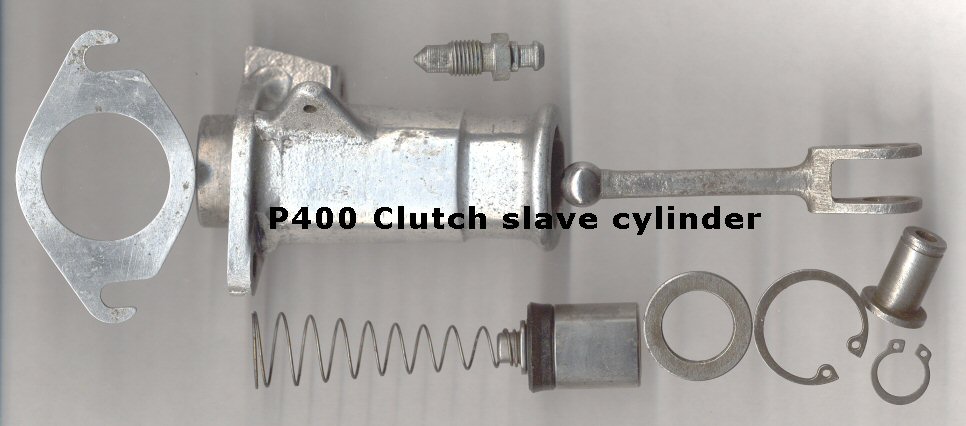

P400 Clutch slave cylinder


notes from P400S parts book -
starting with engine #2706 , 2 things change-
TF-03582 clutch housing is designated with letter P
GN-05848 o-ring is added to the throw out bearing assembly

starting with engine #30384, 2 things change
TF-06498 replaces TF-04005
TF-06499 replaces
TF-04006

http://www.resleeve.com/sleeving.htm
http://www.racing-stuff.com/master_cylinders.htm
http://www.nfauto.co.uk/master_cylinders.htm
http://essexparts.com/CatalogPDF/Essex_52~Caliper-Hyd_Rep.pdf
